> Pex al pex 5/8" tubing pipe 300' best deal 10397P300
Pex al pex 5/8" tubing pipe 300' best deal 10397P300
Tubing Size in inches (0.625 ID x 0.787" OD)
Excelamerica Inventory # 10397P300
Tubing is marked by the foot - every 3 feet - makes inventory control a breeze
Do you want to see how easy it is to cut and assemble PEXALPEX?
Max Working Temp = 203 F @ 150 PSI
FLEXIBLE PEX PIPE WITH MIDDLE LAYER OF ALUMINUM
GIVES 100% PROTECTION FROM OXYGEN DIFFUSION
GET THE BEST ADVANTAGES OF METALLIC AND PEX PIPE.
MOST FITTINGS USED WITH " PEX PIPE ARE COMPATIBLE WITH THE FLEXALPEX SYSTEM.
For complete technical information link to our manufacturers website

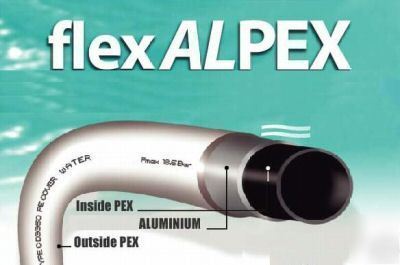

ExcelPEX is PEX-Aluminum-PEX, that is, multi-layered composite tubing consisting of an interior aluminum tubing lined with inner and outer layers of cross-linked polyethylene (PEX). ExcelPEX is a durable, reliable tubing that will not corrode or rust. The flexibility of ExcelPEX tubing results in easy rollouts. The stay-in-place rigid feature of the tubing makes it ideal for:
* Radiant Floor heating systems
* Baseboard supply and return
* Chiller and fan coil systems
If you want to know a little more about ExcelPEX :
* The PEX layers protect against corrosion and creates a shield so the tubing can be embedded in concrete.
* The aluminum layer offers 100% oxygen diffusion and provides stiffness to hold the tubing in the desired shape.
* Together, the layers make up a flexible tubing that stays in place, won't discolor and has a very low thermal expansion rate (similar to copper and teel).
* On the other hand, PEX pipe is plastic and thus has a much higher thermal expansion coefficient that can result in heat stress cracking of cement and asphalt floors due to expansion of the embedded pipe..
ExcelPEX protects the metallic components of the water distribution from corrosion caused by oxygen diffusion by regular PEX closed loop water systems.
NSF Approved for Potable Water
ExcelPEXinner and outer layers consist of silane method cross-linked polyethylene ( PEX ) At normal temperature, it does not dissolve in any known solutions and is resistant against acid, alkali and salt of various kinds.
Both materials offer perhaps the best chemical and corrosion resistance of any plastic used in the manufacture of plumbing pipes. The polyolefin family of plastics PEX is renowned for it's toughness, long working life and resistance to deterioration in the most extreme environments.
On the other hand, when metal or copper pipes are exposed to aggressive soil and water conditions, they are susceptible to corrosion and pitting.
The entire ExcelPEX plumbing system is designed to provide you with the cleanest drinking water possible.
ExcelPEX clean, non-corroding plastic interior is resistant to deterioration in aggressive water conditions. You needn't worry about odor, color or taste problems arising because of the plumbing pipes in your home.
And given ExcelPEXbuilt in permeation barrier, you have built in peace of mind that your buried water pipes will not be permeated by ground source contaminants.
No more copper sticks, no more sweating joints every few feet. ExcelPEX convenient, lightweight coils allow you to install a professional plumbing system quickly and efficiently. Installation crews are less fatigued and larger coils mean less wastage.
Need to make a bend ? Go ahead. Need to snake pipe around an obstruction ? There's nothing stopping you. When the system calls for a fitting, you simply cut, bevel, insert and crimp the pipe for secure, long-term connections. It's really that fast and simple.
MALLEABLE: Unlike garden variety PEX pipes that spring back upon bending , flexALPEX pipe is easy to bent and its metallic inner core gives it the memory to stay bent
ExcelPEXcan be installed in walls and ceilings or surface mounted. It can be supported horizontally or vertically on 8 foot centers because its stiffness and expansion rate is similar to copper's. ExcelPEX can be encased in concrete or buried underground without additional protection because its tough outer plastic layer resists chemicals and corrosive activity.
And ExcelPEX aluminum core provides a 100% permeation barrier against oxygen diffusion in closed loop system.
ExcelPEXsmooth inner plastic wall permanently resists scaling and mineral build-up, keeping water flow constant year after year. Unlike metal pipes, you won't see a reduction in flow area with ExcelPEX. That means home owners can enjoy a constant water pressure throughout the house, throughout the years.
ExcelPEX uses fewer fittings almost half the fittings used in a copper system. Fewer fitting joints means less chance of leakage and less liability.
It is not only designed for better long term flow rates, the inner plastic layer is non-corroding and won't pit, pinhole, or erode in aggressive water conditions. FLEXALPEX is designed to provide years of trouble free performance in the toughest of conditions. Other pipes just don't compare.
ExcelPEXaluminum core controls the amount of expansion and contraction in the pipe. In fact although ExcelPEX looks like a plastic pipe its expansion rate is very similar to copper s so you do not have to worry about building in costly and time consuming pipe offsets.
NO OXYGEN DIFFUSION ALUMINUM BARRIER
OXYGEN DIFFUSION THRU PEX CORROSION POTENTIAL IN METAL COMPONENTS WITHIN THE SYSTEM
Fittings used with PEX pipe are compatible with the flexALPEX system.
Size : Nominal 12mm ID x 16mm OD (0.475 ID x 0.625 OD)
Used in Europe , Australia and Japan for many years, this technology is now revolutionizing the way we pipe water in America.
Get your job finished at wholesale cost and save on time by getting the roll delivered to the jobsite !!
The Retail List price is 1.19 per foot and you have the chance of getting it less than half the list price !
For complete technical and code information link now to our manufacturers website
