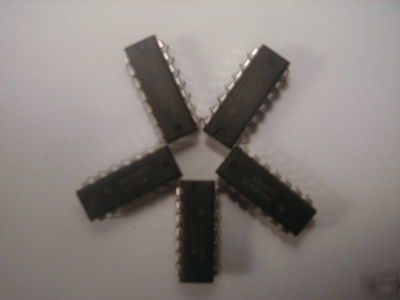

Texas instruments TL064CN quad low power bi-fet op amp
Typical Supply Current . . . 200 uA (Per Amplifier)
Wide Common-Mode and Differential Voltage Ranges
Low Input Bias and Offset Currents
Common-Mode Input Voltage Range Includes VCC+
High Input Impedance . . . JFET-Input Stage
Internal Frequency Compensation
High Slew Rate . . . 3.5 V/us Typ
The JFET-input operational amplifiers of the TL06_ series are designed as low-power versions of the TL08_ series amplifiers. They feature high input impedance, wide bandwidth, high slew rate, and low input offset and input bias currents. The TL06_ series feature the same terminal assignments as the TL07_ and TL08_ series. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The C-suffix devices are characterized for operation from 0 C to 70 C. The I-suffix devices are characterized for operation from 40 C to 85 C, and the M-suffix devices are characterized for operation over the full military temperature range of 55 C to 125 C.
The chip comes in an 14-Lead Plastic Dual In-line.
This is Bi-Polar, therefore it is NOT static-sensitive.
