> New power one HN15-4.5-a power suply 15V@4.5

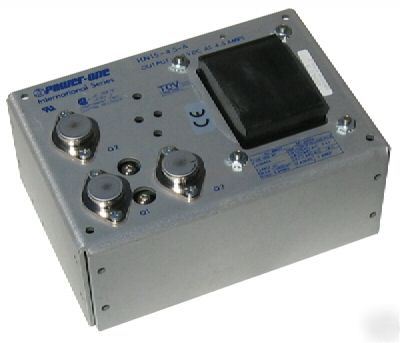

New power one HN15-4.5-a power suply 15V@4.5
POWER SUPPLIES, INTERNATIONAL LINEARS, 15V@4.5A
General Specifications. AC Input: 100/120/220/240 VAC +10%, 13%. 47-63 Hz. Tolerance for 230 VAC operation is +15%, 10%. Derate output current 10% for 50 Hz operation. Factory wired for 120 V operation. DC Output: Adjustment range 5% minimum. Voltage nonadjustable on 3 terminal regulator outputs of models HAD12, HAD15. Line Regulation: 0.05% for a 10% line change. Exceptions 0.01% for F, G case models and CP197-A; 1% for HAD12 and HAD15; 0.5% for all other outputs using 3 terminal regulators. Load Regulation: 0.05% for 50% load change. Exceptions 0.02% for F, G case models and CP197-A; 1% For HAD12 and HAD15; 0.5% for all other outputs using 3 terminal regulators. Output Ripple: 5 V through 15 V models 5.0 mV PK-PK maximum (3.0 mV PK-PK maximum for F, G case models and CP197-A); 24 V through 250 V models 3.0 mV PK-PK plus 0.02% of output voltage, maximum; All 3 terminal regulator outputs 0.2% PK-PK maximum. Transient Response: Less than 50 sec for a 50% load change. Short Circuit and Overload Protection: Automatic current limit/foldback. Overvoltage Protection: Provided on 5 V outputs where indicated. Set at 6.2 V 0.4 V. Other outputs use optional overvoltage protectors OVP12 and OVP14. Remote Sensing: See Voltage/Current Rating Charts. Provided on output where indicated. Stability: 0.3% for 24 hours after warm-up. Operating Temperature Ratings: 0 C to 50 C full rated, derated linearly to 40% at 70 C (CP197-A requires 50 CFM forced air over heatsink area for full 50 A output). Storage Temperature Ratings: 40 C to 85 C. Temperature Coefficient: 0.01%/ C typical, 0.03%/ C maximum. Efficiency (Typical): 5 V outputs 45%; 12 V and 15 V outputs 55%; 24 V through 250 V outputs 60%. Master/Slave Operation: Provided on F, G and CP197-A models only. For parallel operation of up to 6 units. Vibration: Random vibration from 10 Hz to 2 KHz, 6.15 g (3 axis). Shock: Operating 20G peak acceleration. EMI/RFI: These linear power supplies have inherently low conducted and radiated noise levels. For most system application they will meet the requirements of FCC Docket 20780 for Class B equipment and VDE 0871 for Class B. Safety Specifications. All models exceed the following safety standards. Leakage Current: Line to Ground (Max.) 0.05 mA. Creepage Distance: Live Parts to Dead Metal (Min.) 0.345" (9.0 mm). Dielectric Withstand Voltage (Min.): Input to Ground 3750 V RMS ; Input to Outputs 3750 VR
* Worldwide AC Input Capabilities: 100/120/220/230/240 VAC
* UL Recognized: 1950 with D3
* THIS IS A NEW UNIT AND SELLS ONLINE ELSEWHERE FOR $88.45. LET ME KNOW IF YOU HAVE ANY OTHER QUESTIONS.
* THIS ALSO COMES WITH THE EXTERNAL POWER CONVERTER CABLE FOR THE MDS SERIES TRANSCEIVERS.
