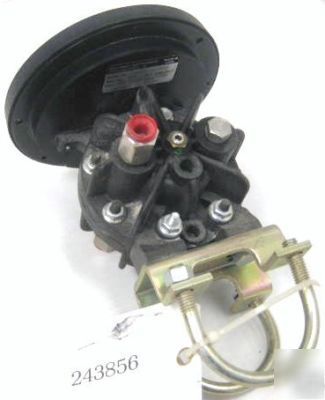

Mid-west instruments 130PC-03-bfo flow indicator gauge
This listing is for a flow indicator gauge (guage) (gage).
* Make: Mid-West Instruments (MidWest)

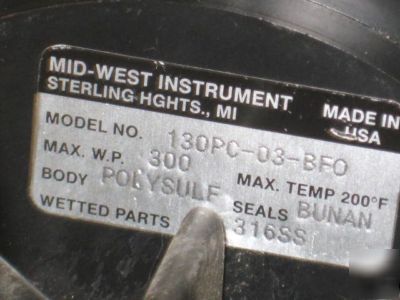

* Model / Part #: 130PC-03-BFO
* Connection: 3/4" NPT (three-quarter-inch) (3/4in) (3/4 in) (3/4inch) (3/4 inch)

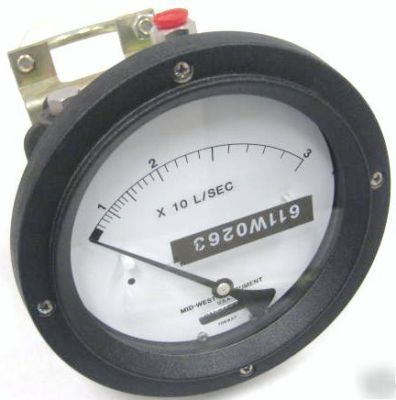

* Range: 0-30L/Sec (Thirty Liters Per Second) (30 L / Sec)
* Face Diameter: Approximately 6" (six inch) (6in) (6 in) (6inch) (6 inch)
* Max Woring Pressure: 300PSI (300 PSI)
* Wetted Parts: 316-SS (316SS)
* Description: Flow Indicator Gauge
Diaphragm Type Differential Pressure Gauge
LOW RANGE: 0-5" H20 (0 to 12.4 mbar) to 0-400" H20 (0 to 1 bar)
* The Model 130 is a rugged general purpose differential pressure gauge with a 4-1/2" round dial.
* Either linear or square root (for flow) dials.
* Working pressure of 300 P.S.I.G. (20 bar) with a polysulfone body, and 500 P.S.I.G. (34 bar) in aluminum, brass, 316 S.S., and Hastelloy C.
* Over-range protection to rated working pressure.
* Magnetic coupling between the sensing element and the indicating pointer provides for complete isolation of the process fluid within the pressure capsule.
* Suitable for use on virtually all reasonably clean liquids or gases.
* Diaphragm design allows use of dissimilar fluids on high and low side of gauge.
* Can be used with vacuum or pressure applications.
* Ideal for liquid level indication for pressurized tanks.
* Wide range of elastomers.
* CE marked switches and enclosures are available.
A flexible elastomer diaphragm and calibrated spring sense differential pressure. The diaphragm provides total separation of the high and low pressure liquids and gases. Totally supported at full travel in either direction, this feature assures full overrange protection to the rated working pressure of the gauge.
A magnetic coupling transmits the sensing element motion to the indicating pointer while assuring total isolation of the process fluid within the pressure capsule. This prohibits the possibility of process fluid leaking into the gauge case. The few internal metal parts are 316 Stainless Steel, or Hastelloy C as an option.
The low range capability of the Model 130 is ideally suited for flow, liquid level and vacuum applications.
Mid-West's product page is located at http:// /pdfs/bulletins/bul130.pdf
This is new / unsued. Original packaging not included. Guaranteed to be in proper working order.
