Metallurgical invert microscope | kohlar illumination

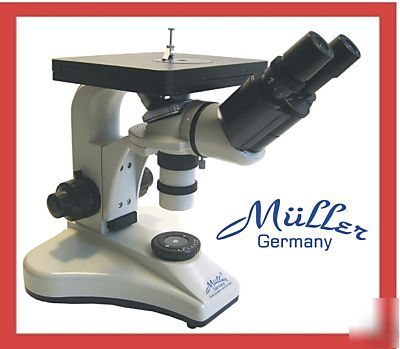

Metallurgical Invert Microscope
Metallurgisches Invertmikroskop mit K hler-Beleuchtungssystem
Binoculare Head / 45 inclined
The metallurgical Invert Microscope BIOLAB-I is widely used to distinguish and analyse different kinds of metal and alloy's metallurgical structures in factories, schools and laboratories!
The Instrument is invert metallurgical microscope. as the objectivational sureface, it can be used conveniently without the limit of its heights. The structures of the instrument is compact, the style is aesthetic and decent!
Large bearing area of its base and firm standig arm make the instrument low barycenter and steady. The viewing head is 45 inclined that you can observe cozily.
Metallurgisches Invertmikroskop Biolab-I
Wide Field Plane-Scope Eyepieces WF 10x/18mm and WF12,5x/15mm
One Wide Field Plane-Scope Eyepiece WF 10x with Cross Micrometer 0.01 mm
45mm DIN-achromatic: 10x, 100x (Oil)
Metallurgical Plan-Scope Achromatic Objective: 40x
Conjugated Distance between Object and Image: 195mm
Coarse Focusing Adjustment Range: 25mm
Fine Focusing Adjustment Range: 25mm Percision 0.002 mm/Scale
Double Layers Mechanical Stage with two Carrier Plates ( 10mm Hole or 20mm Hole)
Movement: 75mm X-direction and 55mm Y-direction
Built-in Adjustable Brightness 6V/20W Halogen Lamp
Kohlar Illumination with blue, green and yellow filter
Invertiertes metallurgisches Mikroskop
* Metallurgical Invert Microscope Biolab-I
* 2 Carrier Plates (10mm / 20 mm)
* Filter (32mm): blue, green, yellow
* Objectives: 10x, 40x, 100x
* 2 Pairs Eyepieces: WF10x, WF12,5x
* Eyepiece WF 10x with Cross Micrometer
