> Centrifugal axial fan 220V 50 60HZ 2 pole 2650/2925RPM

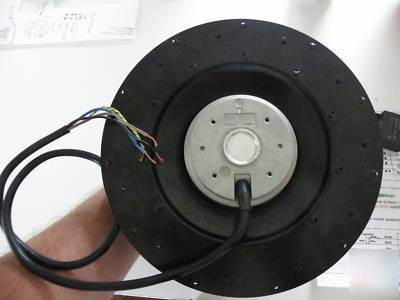

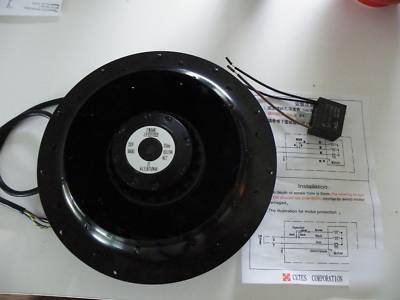

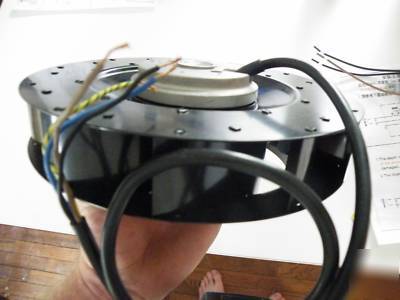

Centrifugal axial fan 220V 50 60HZ 2 pole 2650/2925RPM
Backward Curved Centrifugal Fan
these fans are known for moving high volume of air has 4 screw holes for mounting motor could be used in many applications

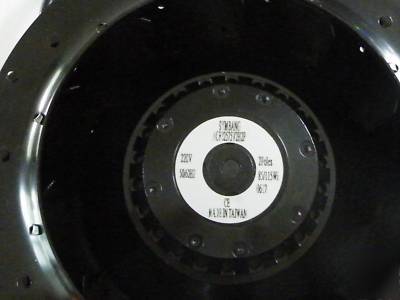

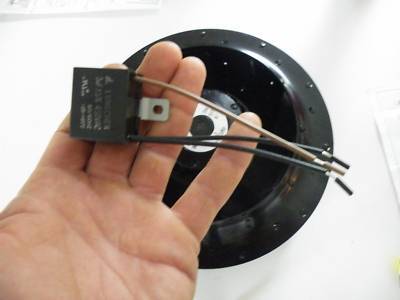

Cutes Corporation SYMBANG Axial fan with Capacitor
largest diameter 92mm or 8.85826772 inches
Air Flow CFM 488/512 m3/hr 830/870
Air Pressure Pa 545/590 mmH2O 55.59/60.18
MOTOR OUTER ROTOR MOTOR Dia 92mm or 3.62 inch
OPERATING TEMPERATURE -20 oC to +70 oC
DIELECTRIC STRENGTH 1500 VAC for 1 minute
INSULATION RESISTANCE 10MEG Ohms Min. @500VDC
