> Brown & sharpe #1 universal cylindrical grinder 10 x 20
Brown & sharpe #1 universal cylindrical grinder 10 x 20

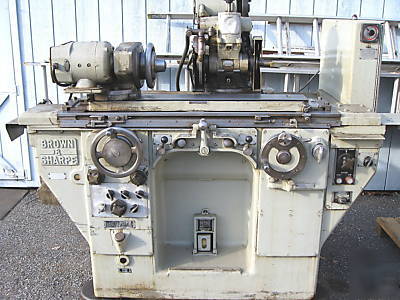

10" x 20" BROWN & SHARPE UNIVERSAL CYLINDRICAL GRINDER
Just removed from working shop that closed after 70 years.
Fully maintained through there maintenance department
Original maintenance and operation manual included (91pages)
I will load on your truck for FREE
Serial No 521-1-140 Model No.1

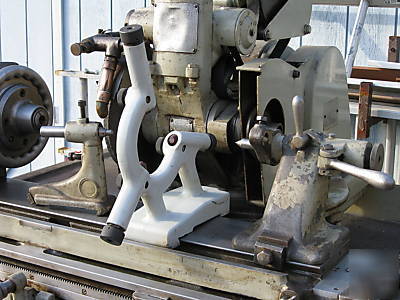

EQUIPPED WITH: Built-In Coolant System ,Table Mount Dresser, Footstock, Center Rest, Collet Chuck .
Grinding Diameter, Maximum............. 10"
Distance Between Centers, Nominal.... 20"
Grinding Wheel Diameter, Standard...... 10"
Grinding Wheel Width, Standard.......0.375- 0.500"
Grinding Wheel Hole Diameter........... 3"
(3) Grinding Wheel Speeds, Range....... 2500 ,3000, 3600 RPM
Workhead Spindle Speeds, Infinite Range 60 to 600 RPM
Table Longitudinal Feeds, Infinite..... 3 to 150 IPM
Wheelhead In-Feeds, Range.............. .0001 to .003
External Grinder Motor, Horsepower............. 1/4 HP
Internal Grinder Motor, Horsepower..............1 1/2 HP
Electrical System...................... 220/440/360
Overall Dimensions, L x D.............. 7'4" x 6'5"
Overall Height......................... 5'3"
Weight, Approximately.................. 5700 LBS
