Bertan 210-10N hv power supply works guaranteed 30DAYS

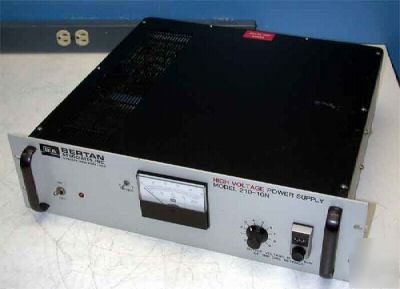

BERTAN SERIES 210 HIGH VOLTAGE POWER SUPPLY MODEL 210-10N
Serial Number: Quantity Available!
* 115/230 Volts, 60 Hz, 5.0/3.0 Amps
!!Guaranteed Working!!30 Day Warranty! Includes Manual
* Short Circuit and Arc Protected
General Description of the 210 Series (may or may not be included on yours):
* The Series 210 is a family of precision regulated linear power supplies with output voltages up to 100kV. The units are fully enclosed and can be operated as bench top instruments or mounted into a 19'' rack. These stable, low noise high voltage power supplies feature reversible polarity, remote analog programming and monitoring, front panel voltage and current metering, and calibrated direct reading front panel voltage controls. All units have arc and short circuit protection for safe, reliable operation. The output high voltage of the Series 210 can be remotely programmed or controlled via the precision front panel direct reading controls. All models can be adjusted over their full output voltage range using an analog programming 0 to -5V signal or using an external potentiometer. Units may also be ordered with remote digital 16 bit binary programming (option CBNY). This option accepts TTL compatible programming inputs applied at a rear panel digital programming connector. Remote analog monitoring of the high voltage output is standard on all Series 210 power supplies. Signals proportional to the output voltage and output current are provided at the rear panel I/O connector. A logic output signal indicating high voltage polarity is also standard. Full talker/listener capability for the Series 210 is available through an intelligent IEEE-488 interface which is offered as an accessory. This interface (the Model 200-C488) allows a GPIB controller to program and monitor a Series 210 high voltage power supply. In addition to duplicating front panel operation, the 200-C488 provides the user with a number of additional functions such as programmable overload detection and response.
General Features of the 210 Series (may or may not be included on yours):
Front panel analog meter, switch selectable for reading output voltage and current. The meter accuracy is 2% of full scale.
Calibrated front panel direct reading multi-turn precision potentiometer and switches. Accuracy is (0.25% of setting + 0.05% of maximum) for models up to and including 30kV; (0.5% of setting + 0.05% of maximum) for 50kV, 75kV and 100kV models.
0.2V for models up to and including 30kV; 20V for 50kV, 75kV and 100kV models.
0 to -5 Volt dc analog input signal proportional to 0 to maximum rated output. Accuracy is (0.25% of setting + 0.05% of maximum) for models up to and including 30kV; (0.5% of setting + 0.05% of maximum) for 50kV, 75kV and 100kV models. The programming input impedance is 5 kilohms.
Analog Output Voltage Monitor:
0 to +5 Volts proportional to 0 to maximum output high voltage. Accuracy is (0.25% of reading + 0.25% of maximum). The monitor output impedance is 50 kilohms.
Analog Output Current Monitor:
0 to +5 Volts proportional to 0 to maximum output current, except as indicated. Accuracy is (0.5% of reading + 0.25% of maximum). The monitor output impedance is 50 kilohms.
Automatic current limiting occurs at approximately 110% of maximum rated output current at the maximum rated output voltage. The allowable maximum output current at any set voltage must be derated linearly from 100% at maximum voltage output down to 30% of maximum output current at 0 output voltage. Supply is self-restoring upon removal of cause of current limit condition.
Arc and short circuit, self restoring.
