4X10 commercial hood ul type 1 package with motors
When i say complete installation it includes the following:

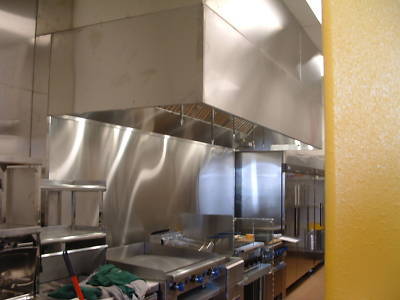

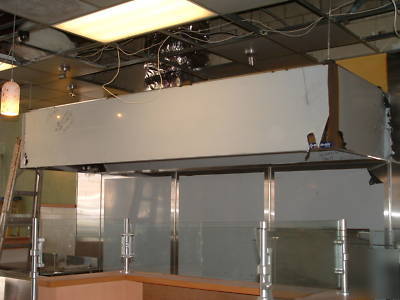

Accurex Single Wall UL Canopy Type One Hood, installation included.
Stainless Steal Flashing underneath hood and an additional 18" of stainless steel on each side of hood due to combustible reasons
Manufacture Grease Duct, weld duct to hood and roof curb.
Stainless Steal Skirt Above Hood, From the top of hood to suspended ceiling or drywall ceiling.
Complete Duct work on roof for exhaust fan and duct work for evaporative cooler with diffuser.
Exhaust Grease Fan, Evaporative Cooler Units with motors and installation or supply fan.
Complete electrical for both motors and connect evaporative cooler to fire suppression system.
Complete Fire Suppression System with plans and permits, shut off gas valve included.
Mechanical Plan For Hood, if needed
G&S Construction & Developers, Lic 770130, Giuliano Silva (***)-429-7037 Call Me!
I have a great feed back ratio that im very proud of and you should have no worries about our products either.
I have hoods of all sizes from 4x4 to 4x14 and special orders as well, for example hoods sizes that are odd sizes, they require a special order on odd size hoods.

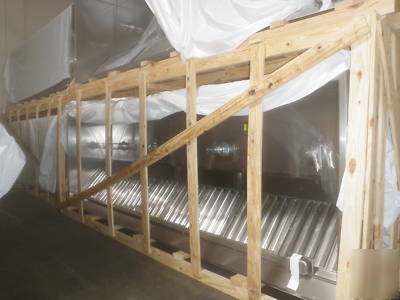

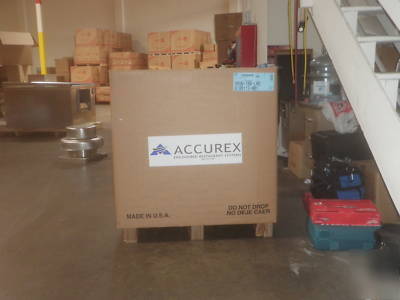

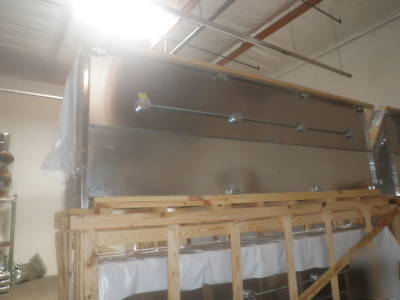

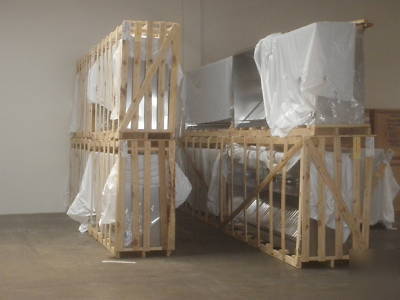

Our hoods come straight from the factory in crates, ready for delivery.
Here some information regarding the Hoods your purchasing and motors.

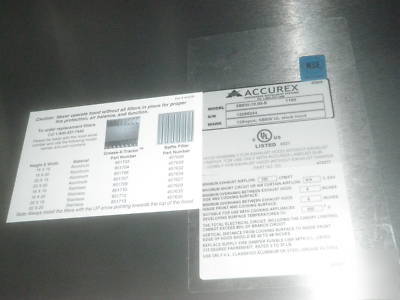

* UL 710 Listed and bears the National Sanitation Foundation (NSF) Seal of Approval (Standard 2)
* Rated for 400 F, 600 F, 700 F
* Standard construction is a minimum of 18 gauge 430 stainless steel with an embossed finish
* Longer hoods are available in multiple sections and can be made to appear as one hood by utilizing our continuous capture option to improve performance and aesthetics
* Includes Performance Enhancing Lip (PEL) to improve capture efficiency by turning air back into the hood
* Flexible lengths, widths and heights (see performance and sizing availability)
* Hood lengths are available in 1 inch increments
* Hood widths are available in 3 inch increments
* Standing Seam Construction for superior strength
* Excellent dimensional tolerances due to highly tooled manufacturing
The standard method of construction of the single wall front panels are with a single wall of 18 gauge 430 stainless steel with an embossed finish
* No integral supply. Supply air is introduced through ceiling diffusers or external supply plenums
Type 2 hoods are also available: Heat and Condensate
Accurex offers Heat and Condensate hoods that are available in a wide range of sizes to meet your varying design constraints. These hoods are designed to capture heat and/or condensate (Type II Hood) from non-grease producing appliances such as ovens and dishwashers.
Non-Filtered Heat and Fume Hoods - Model XO
This hood is primarily used for ovens or general ventilation applications to capture heat and vapor, creating a more comfortable environment for the cooking staff
Condensate Hoods - Models XD1, XD2, XD3
* Primarily used for dishwasher or condensate applications to capture heat and vapor, creating a more comfortable environment for the cooking staff
* These hoods are constructed with a gutter and drain
* The condensate hoods are available in three styles:
* No Baffles - Most economical and flexible in condensate applications
* 1 Baffle - Designed for moderate condensation applications. Great for vertical door dishwasher applications
* 2 Baffles - Designed for heavy condensate applications

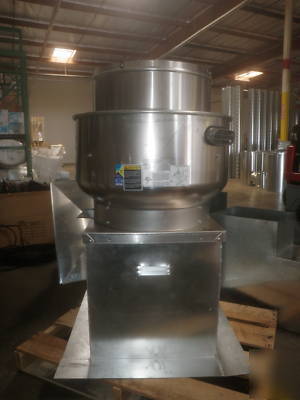

Roof Upblast/Sidewall Exhaust Grease Fan
* Grease or general applications
* Backward inclined centrifugal wheels
* Up to 30,000 cfm and 5.0 in. wg

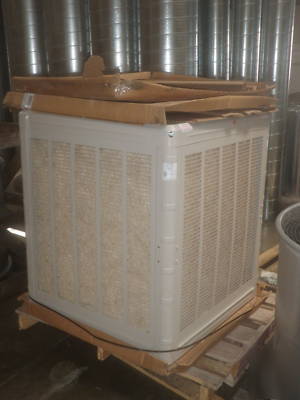

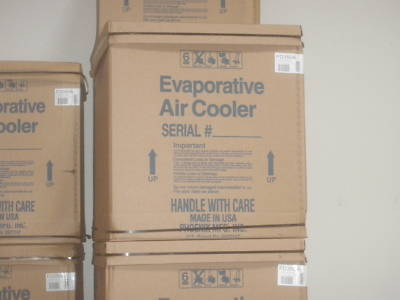

Champion Cooler N56/66D 6600CFM Evapcool Down Draft Duct Cooler
Unique rust free bottom pan. The one piece bottom pan prevents corrosion and leakage since the need for seams, spot welding and sealing materials is eliminated. Weather and impact resistant, heavy gauge galvanized steel metal cabinets are built to last and are tough enough to resist weather and impact. The Versatile, bolted construction allows for easy access for parts replacement and provides greater resistance to rust since the need for welding is eliminated. The easy to remove steel pad frame provides quick and easy access to the cooler interior. ATTENTION: This evaporative cooler performs best in dry, arid climates.
