Hhp IT4710 usb 2D image reader hand held scanner
HHP IT4710 USB 2D Image Readers

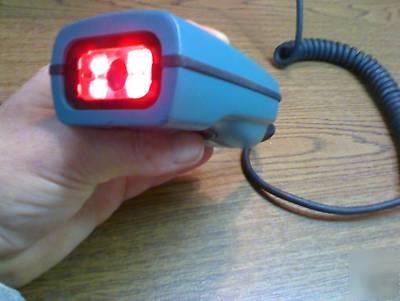

This is a used, working HHP USB 2D Image Reader hand-held scanner. It is in good working condition. The unit shows only normal wear and may have some sticker residue to remove.
The unit was recently removed from service in a large corporate environment, and is in good working condition.
* Serial to USB adapter cable
* CD containing - User manual, USB driver, TWAIN driver, Quick Start Scan codes, Visual Menu software, and Quickview Utility
Here are some additional information from the manufacturer:
The Hand Held Products IMAGETEAM (IT) 4710 Image Reader can be configured as either a hand held or fixed mount device that reads matrix, stacked linear and conventional linear bar codes, as well as a single line of OCR-A and OCR-B fonts. Multi-line OCR applications can also be read. The IT4710 has the power to capture and download images to a PC for applications that include signature capture, PCbased decoding, and image lift requirements.
The IT4710 Reader can be used in retail, transportation, packaging, printed circuit board manufacturing, electronic component manufacturing, and clinical/diagnostic applications that include test tube and reagent package labels.
The IT4710 can be configured for keyboard wedge, HHLC (Code 128 emulation), TTL, or True RS-232. The IT4710 connects to all popular PCs and portable data terminals. HHLC mode can be used with external wedge decoders and portable terminals or other devices without 2D decoding capability.
The IT4710 features integrated processing for a one-piece scanning solution - no additional boxes or electronics needed. The reader provides omni-directional and auto-discrimination decoding for symbologies, such as MaxiCode, PDF417, QR, Data Matrix, Aztec code, RSS code, composite codes, postal codes, Code 39, Code 93, Interleaved 2 of 5, Codabar, Code 128, UPC, and EAN. Additional symbologies will be added based on market demand. Because the IT4710 is a fixed focus device, four product models with different focal points are available.
Two high density scanners are available: IT4710HD and IT4710HD10. The IT4710HD, with a focal point of 2 inches, is recommended when the matrix symbols are less than 10 mil. The IT4710HD10 is recommended for applications when the matrix codes are greater than 10 mil. This version, with a focal point of 3 inches, maximizes the depth of field on 10 mil matrix codes, which directly correlates to greater functionality by the end user. The long range (LR/LX) models of the IT4710 are highlighted in separate data sheets.
Hand held or fixed mount image reader for reading and decoding 2D symbologies, and capturing images.
Supports All Popular 2D Symbologies -
Fixed mount IT4710 supports all popular matrix and stacked linear symbologies: MaxiCode, Aztec, Aztec Mesa, Data Matrix, PDF417, QR, and MicroPDF417.
Opens up new 2D bar code and image capture possibilities for fixed scanning applications.
The video technology offers omni-directional scanning, even on linear codes, greatly simplifying operator training and increasing productivity.
The IT4710 has a bright, intuitive aiming line.
Autodiscriminates Between Supported Symbologies and Fonts -
Reads all major linear, stacked linear, and matrix bar codes as well as machine readable fonts used in Optical Character Recognition (OCR).
