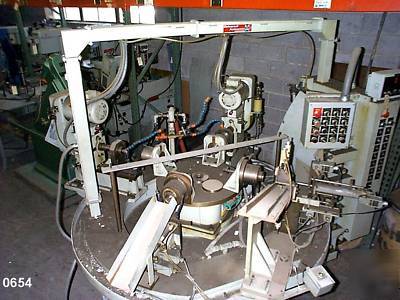

Universal automatic tapping machine drilling machine
UNIVERSAL-AUTOMATIC MODEL AM-402
Two-Spindle, 4-Station Index Type Machine
Drill capacity: 3/8" (Mild steel)
(2) Model A Horizontal Drill Units, 3/4" combination drive
spindles, hydraulic feed control, dove-tail mounts
(1) Graham 22-200-04 , 4-station CCW Hydraulic Indexer
(4) Zagar 707-600-1, 2" cap. Collet fixtures with angle plate
adapters, adj. back stops, (2) Set 1.750 collet pads
(1) Automatic collet close-open mechanism
(1) Deep hole reciprocator with accumulative feed control
(1) Adjustable parts magazine, single escapement and
placement. Adjustable for parts from 3/4" to 2"
(2) Dove-tail mounted Gatco Rotating Bushings (1-3/4" ID)
Missing coolant tank, hyd. power unit for index
