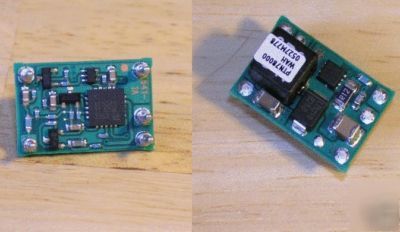

Tiny step-up pwm converter 2.9-5V in / 5-15V out, 12W
Step-UP Switching Regulator Module
2.9-5.5V IN, 5-15V OUT , 12W Output (2.4A max)
Tiny module is just 0.87" x 0.5"
The smallest, lightest, most efficient way to get a regulated power to a circuit.
Perfect for portable equipment using either 3 or 4 cell Nickel chemistry batteries or 1 Lithium-Ion battery.
It is the ideal way to implement Lithium-ion power sources in portable equipment, since these batteries vary greatly in output voltage over their discharge cycle, and regulation becomes a must. It also implements undervoltage shutdown, to prevent overdischarging a Li-Ion cell.
The PTN04050C is a 4-pin boost-voltage regulator, smaller and lighter than its predecessors, and has either similar or improved electrical performance characteristics. The case-less, double-sided package, also exhibits improved thermal characteristics, and is RoHS compliant.
Operating over a 2.95 V to 5.5 V input range, the PTN04050C provides high-efficiency, step-up voltage conversion for loads of up to 12 W. The output voltage is set using a single external resistor. The PTN04050C may be set to any value within the range, 5 V to 15 V. The output voltage of the PTN04050C can be as little as 0.5 V higher than the input, allowing an output voltage of 5 V, with an input voltage of 4.5 V.
Item with highest S&H pays its full S&H.
Additional lots of SAME item Number have S&H discounted 60-90% .
Additional lots of a DIFFERENT item number have their S&H discounted 50-70%.
Heavy items like transformers, motors, ferrites, are an exception to this.
