Square d interrupting switch & 750-1000 kva transformer

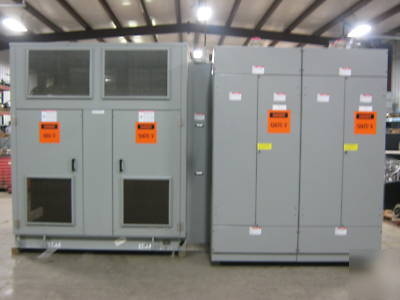

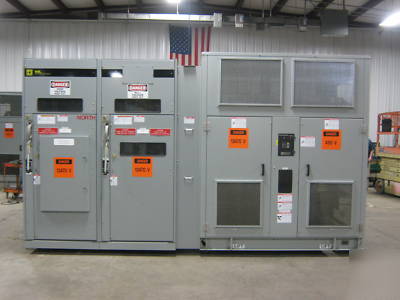

Square D Interrupting Switch & 750-1000 KVA Transformer

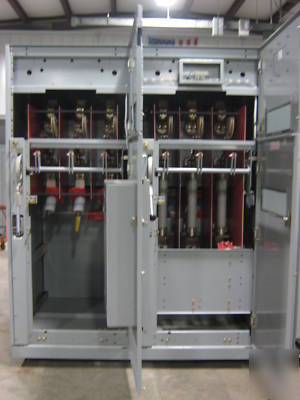

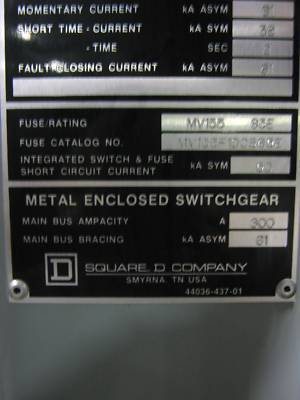

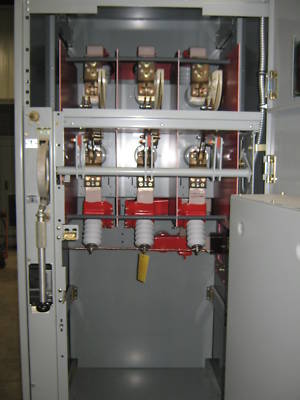

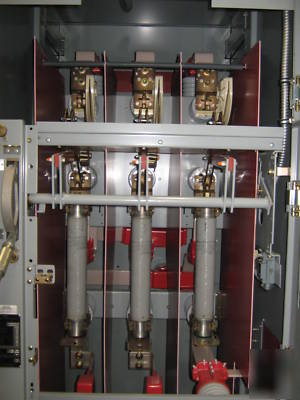

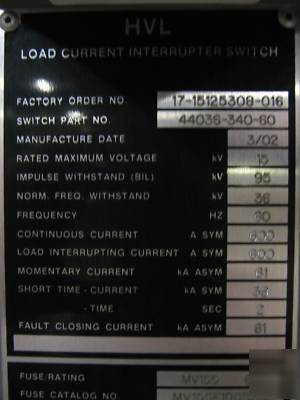

Square D Load Current Interrupting Switch, Main Bus Ampacity A 600, Main Bus Bracing KA ASYM 61
Factory Order No. 17-15125309-016, Switch Part No. 44036-340-60
Manufacturing Date 3/02, Rated Maximum Voltage 15 KV, Impulse Withstand (BIL) 95 KV,
Norm Freq Withstand 36 KV, Frequency 60 Hz, Continuous Current A SYM 600,
Load Interrupting Current A SYM 600, Momentary Current KA ASYM 61,
Short Time Current KA SYM 38, Time Sec. 2, Fault Closing Current KA ASYM 61

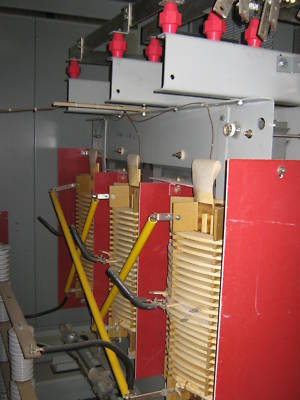

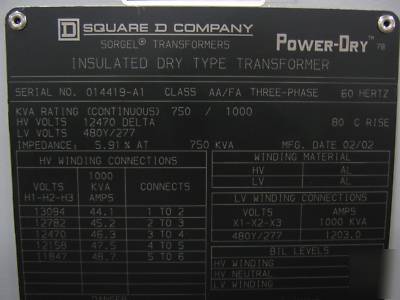

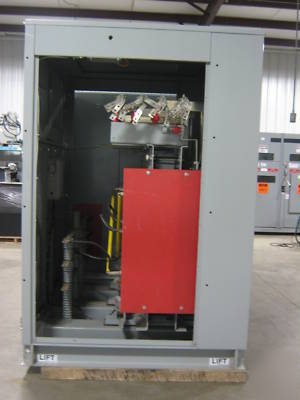

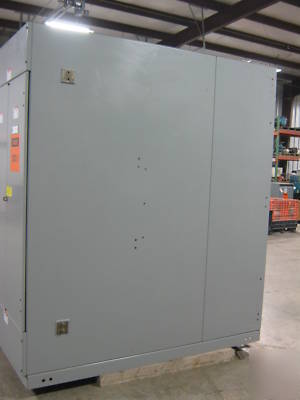

Square D Power Dry Insulated Dry Type Transformer
Serial No. 014419-A1, Class AA/FA, 3 Phase, 60 Hz, KVA Rating (Continuous) 750/1000,
H.V. 12470 Delta, L.V. 480Y/277, 80 C Rise, Impedance 5.91% @ 750 KVA, MFG 02/02
Core and Coils 4818 lbs, Total 6427 lbs
2 Available one right hand, one left hand.
