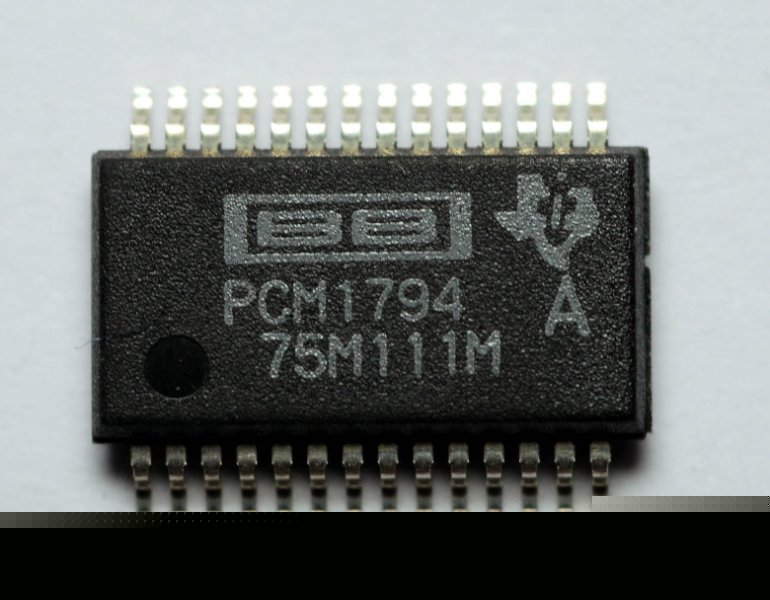

PCM1794A PCM1794 24BIT 192KHZ stereo dac burrbrown
For sale 1pc PCM1794A DAC from Burr Brown.. I have many of this chips.
Contact me if you want EMS(Express Mail Service).
Please check my other listing as well.. thanks
132 dB (9 V RMS, Mono)
129 dB (4.5 V RMS, Stereo)
127 dB (2 V RMS, Stereo)
* Differential Current Output: 7.8 mA p-p
* 8 Oversampling Digital Filter:
* Stop-Band Attenuation: 130 dB
* Pass-Band Ripple: 0.00001 dB
* Sampling Frequency: 10 kHz to 200 kHz
* System Clock: 128, 192, 256, 384, 512, or 768 fS With Autodetect
* Accepts 16- and 24-Bit Audio Data
* PCM Data Formats: Standard, I2S, and Left-Justified
* Optional Interface Available to External Digital Filter or DSP
* Digital Filter Rolloff: Sharp or Slow
* 5-V Analog, 3.3-V Digital
* 5-V Tolerant Digital Inputs
* Small 28-Lead SSOP Package
* Digital Multitrack Recorders
* Other Applications Requiring 24-Bit Audio
The PCM1794A is a monolithic CMOS integrated circuit that includes stereo digital-to-analog converters and support circuitry in a small 28-lead SSOP package. The data converters use TI s advanced segment DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1794A provides balanced current outputs, allowing the user to optimize analog performance externally. Sampling rates up to 200 kHz are supported.
