New 0.25" cap. 96" w birmingham h-0865-c shear, hydraul
0.25" Cap. 96" W Birmingham H-0865-C NEW SHEAR, Hydraul
0.25" Cap. 96" Width Birmingham H-0865-C NEW SHEAR, Hydraulic, FOPBG, Shadow Light
Model: H-0865-C (8' x 1/4") - made in China
96" x 1/4" Mild Steel & 3/16" Stainless Steel

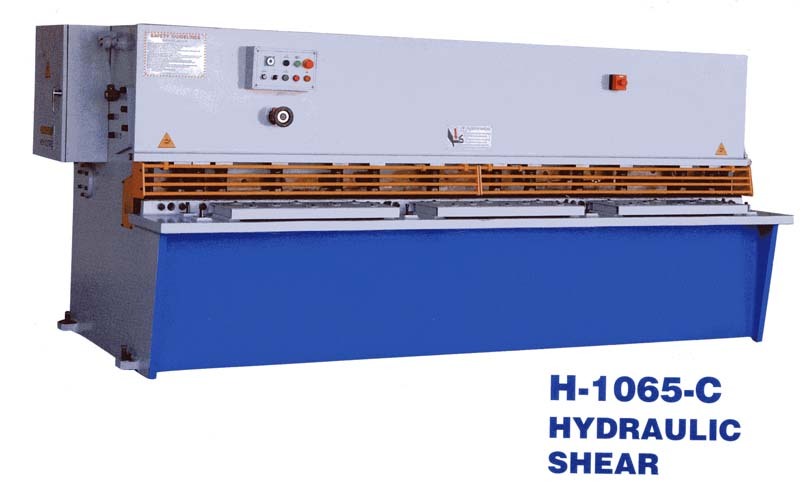

Note: Images shown are of models H-1065-C & H-12130-C
- High carbon, high chrome shear blades
- Manual quick change blade gap adjustment
- Front controlled power operated backgauge
- Hydraulic, electrical overload protection
- Automatic swing-up backgauge
- Hold-downs faced with anti-mar neoprene
- Blade guard, micro switch protection
- Squaring arm, 43-1/2" from blade to end
No load strokes per minute: 18
Range of back gauge: 0.78" - 24"
Overall Size: 10.3' L x 5.3' D x 5.3' H
- 3-Axis CNC Programmable Backgauge SIEMENS:
Controls backgauge depth, blade gap adjustment, stroke length
Can be operated in manual or automatic mode
- "Go-To" Backgauge, Mitsubishi, 36" travel, 10 steps
- Front & rear protection guards
