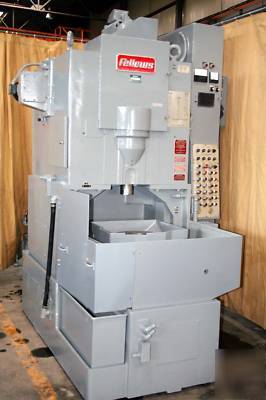

Fellows 10-2 high production gear shaper
FELLOWS 10-2 HIGH PRODUCTION GEAR SHAPER
Maximum Pitch Diameter, External & Internal 10"
Maximum Diametrical Pitch, Spur 4
Maximum Diametrical Pitch, Helical 5
Maximum Helix Angle (using 5" Cutter) 45
Spindle Stroking Speeds (Variable) 105-1260 RPM
Face Plate to Spindle Housing 13.25"
Number of Cuts per Cycle 1, 2 or 3
Motor Driven with 7.5/3.75 HP, 2-Speed, 3 Phase, 60 Cycle, AC Volt Spindle Drive. Reliance AC Variable Speed Rotary Drive for Feeds. 5 HP Hydraulics. MD Coolant. MD Lubrication. Complete Electrical Controls. Capacity for Cutting Internal or External Spur or Helical Gears and many Non-Involute Shapes. Built-in Crowning Ability. Variable Speed Infeed for Better Finish and Extended Cutter Tool Life. Cuts and Infeed Rates are Set by Potentiameters. Infinitely Variable Depth Control. Infeed Positioning. Digital Display for Setting Stroking Speeds for Rough and Finish Cuts. Automatic Cutter Positioning for Locating Cutter at Top or Stroke. Automatic Braking. 1,2 Cut Cycles. Automatic Fixture Clamping. Analog LED Table RPM. Chip Basket.
