B&k model 1477 15 mhz dual channel oscilloscope


B&K MODEL 1477 15 MHZ ANALOG OSCILLOSCOPE
This is a two channel, two trace oscilloscope with a bandwidth from 0 - 15 MHz. Traces are sharp and bright . Display is 8 cm x 10 cm in size.
Vertical sensitivity: from 20 v/div to 0.01 v/div
Horizontal sweep rates: from 0.5s/div to 0.5us/div (with an additional 5x magnification to 0.01us/div)
Scope will display: cha, chb , both channels, subtracted and added modes

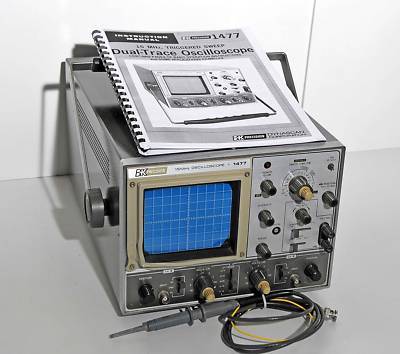

Comes with a used Tektronix 1x p6006 scope probe, and a copy of the manual.

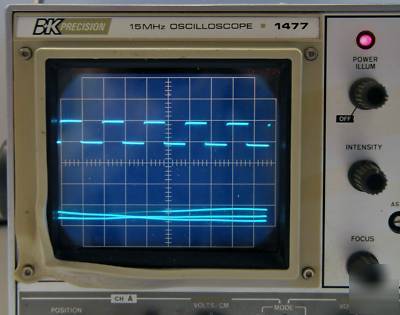

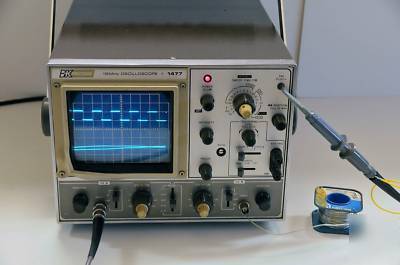

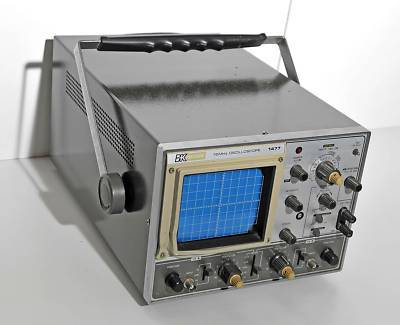

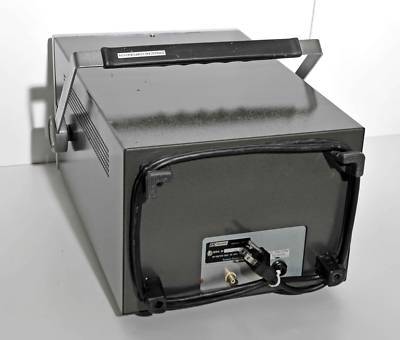

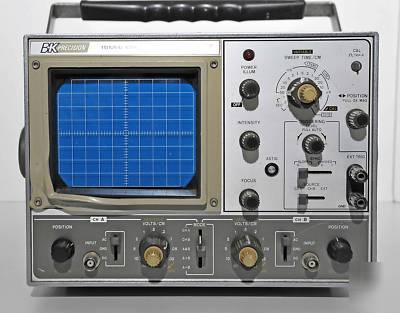

Photos show scope connected to the built in calibrator, with ch2 connected to a short wire - picking up stray rf. Case has been re-painted and front bezel shows melt mark where someone ( NOT me!) used a heat gun to shrink wrap something. Inspection inside shows no traces of anything wrong. This scope works well!
Used, tested, guaranteed fully working.
