> Leitz dialux EB20 microscope mikroskop camera, polarize

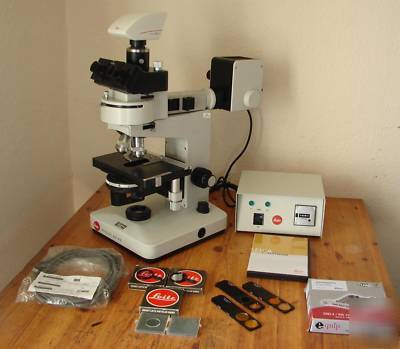

Leitz dialux EB20 microscope mikroskop camera, polarize
Polarize light with top - bottom filters
PLOEMOPAK Epi - fluoresce vertical illuminator & 3 filters
The LEITZ Dialux EB20 offers exemplary stability as a research grade microscope, Recognized as a leading microscope for pathology, biology, bontany, neuroscience and aquatic studies the Leitz Dialux can be equipped to handle any imaging task. This is Leica's most popular scientific instrument.
2x Leitz TL160 GF 12.5x on Binocular observation and phototube Leitz 512 738,
1- PLAN 10X/0.25 160/ INFINUTY ..................519864 - YELLOW RING
1- 63/1.40 OEL PHOCA 4 160/0.17 WITH OIL IMMERSION 519797
1- 100/1.32 OIL NPL FLUOTAR *160/0.17 WITH OIL IMMERSION 519847 - WHITE RING
1- 40/1.00 OEL PL APO 160/0.17 WITH OIL IMMERSION - BLUE RING
3- Bottom light Polarizing Filter
A - Grau 5% excellent to brand new condition
B - Grau 0.2 % NG3 excellent to brand new condition
C - Panchrom Grun - without frame, excellent to brand new condition
1- Diagmostic Instrument with 0.50X lens - D50NLC - Brand New Condition
5 - Upper light Polarizing Filter ( on 3 filter stick holder)
K490 - K 470 excellent condition to brand new condition
K460 - K 430 excellent condition to brand new condition
Grau - good condition with little bend on frame
1 - ultra high pressure mercury lamps, and 20 W tungsten halogen lamp. only 69 hours being used
Leitz Ploemopak head with Fluorescence Filters:
1- Leitz fluorescence L3 filter cube, cat# 513670 - excellent to brand new condition
excitation=450-490, emission=515-560BP, dichroic=510
1- Leitz fluorescence I3 filter cube, cat# 513683. excellent to brand new condition
excitation=450-490, emission=520LP, dichroic=510
1- Leitz fluorescence D/F/R filter cube, cat# 61000. (DAPI/FITC/TRITC), excellent to brand new condition
The UV exciter in this set is centered around 400 nm. DAPI will be considerably brighter than Hoechst when using this set. Triple band fluorescence filter combination is designed specifically for simultaneous detection of the fluorochromes with minimal crossover.
Triple Excitation Filter Block D/F/R (DAPI-FITC-TRITC) Specifications:
Excitation Filter Wavelengths: 385-400 nanometers (bandpass, 393 CWL), 475-490 nanometers (bandpass, 483 CWL), and 545-565 nanometers (bandpass, 555 CWL)
Dichromatic Mirror Wavelengths: 435-470 nanometers (bandpass), 500-540 nanometers (bandpass), and 570-645 nanometers (bandpass)
Barrier Filter Wavelengths: 450-465 nanometers (bandpass, 458 CWL), 505-535 nanometers (bandpass, 520 CWL), and 580-620 nanometers (bandpass, 600 CWL)
Compact - mechanical stage measures 200x 100 mm and makes imaging easy, it has coaxial controls for object movement within an area of 50 x 76mm,
The vertically adjustable dovetail charger has centring screws for the condenser and an adjustable vertical stop.
The coarse and fine adjustment, arranged on both sides of the stand, adjustment range 35mm, actuates the objective stage. one interval on the fine adjustment corresponds to a vertical difference of 2 m
The lamp Housing with ultra high pressure mercury lamps, and 20 W tungsten halogen lamp. only 69.1 hours being used,
Original high Quality Leitz Dual Mercury power supply, which helps your continuous research, 240VAC/BOC, 50 / 60 Hz settings. 69.1 Hours clock. and long life
Condenser: (with S1.1 light ring)
0.90 S1.1 condenser top turned out ( supplementary lens turned in), for objestives of apertures <0.25
0.90S 1.1 condenser top turned in ( supplementary lens turned out), for objectives of aperture > 0.25
without condenser -> Rotary turret position H,-> with all objectives-> Brightfiel
0.90S 1.1 condenser-> Rotary turret position 1, PHACO 4 -> PHASE CONTRAST
Cosmetically in excellent condition
1- 5 megapixel Brand New Leica DFC420 FX Digital Camera system with software
5 megapixel Brand New Leica DFC420 FX Digital Camera system with software Details,
Excellent picture quality is essential for precise image analysis, documentation,and reporting. The 5 megapixel Leica DFC420 Digital Camera system with multishot technology and FireWire interface provides high-resolution pictures with outstanding detail accuracy and brilliant color reproduction. The Leica DFC420 is the cost-effective alternative to traditional film photography and analog video camera systems. Exceptional picture quality and ease of use make the Leica DFC420 the perfect choice for precise, fast imaging for documentation and analysis.
* Live image control provides fast focusing andpositioning of the sample
* Provides 864 648 progressive scan previews of up to 15 frames per second
* 5-megapixel CCD Bayer Array RGB filter produces brilliant pictures
* Exposure times range from 0.2 milliseconds to 60 seconds
* Features 36-bit RGB color depth
* Partial scan mode offers the fastest scanning of a freely defined area at full resolution
* Easily and quickly connects to all microscopesvia a C-Mount interface
* Intuitive user interface offers convenient image capture and processing functions for PC and MAC
* Two-color LED displays operational status
* Ultra compact housing saves space
* Quickly transfer images with standard FireWire 1394a interface for PC and Mac
Leica DFC420 camera kit including:
* Leica DFC Twain Software for PC,
* Leica Firecam Software for Mac
* User Manual, in English, French, Italian, Spanish, German, Korean,
* Leica Application Suite Software for PC - DEMO
* Leica IM50 Image Manager for PC - DEMO
* 2m, 6 to 6 pin FireWire cable
* OHCI FireWire PCI Card for PCs without FireWire interface
The camera s compact housing, specifically designed for microscopy applications, facilitates easy microscope attachment. The camera is not much larger than a computer mouse and does not require an external power supply, which reduces workstation clutter.
The Leica DFC420 makes imaging easy. The camera operates automatically, and shutter and filter changes can be done without disturbing the work at the microscope. Leica s digital technology simplifies all operations, from image capture through image archiving, and allows digital retouching and analysis. The camera is equipped with a C-Mount interface for the widest range of microscope applications.
Intuitive solutions for PCs and MACs
The camera s software makes digital recording on the screen quick and easy, using either a PC or MAC. The easy-to-use interface is specifically designed for microscopy applications. A variatiy of intuitive image capture and editing functions ensure that the recorded images are immediately available for viewing and further processing. This allows the user to take full advantage of all the benefits of modern digital technology.
SOFTWARE VERSION: Release Notes V 6.6.0
If you need more details about Leica camera system please email us,
