Electronic hand held contact/non-contact tachometer

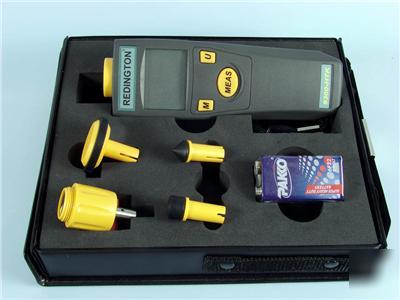

ELECTRONIC HAND HELD CONTACT/NON-CONTACT TACHOMETER
THIS HAND HELD TACHOMETER KIT UTILIZES STATE OF THE ART TECHNOLOGY AT AN AFFORDABLE COST.
SIMPLE TO USE PUSH THE MEASUREMENT BUTTON TO RECORD THE SPEED. THE TACHOMETER CAN BE USED FOR CONTACT OR NON-CONTACT MEASUREMENT ON ROTATING MACHINERY OR SURFACE SPEED. THIS TACHOMETER CAN INDICATE RPM OR ROTATIONAL SPEED, LENGTH MEASUREMENT, METERS, YARDS, OR FEET PER MINUTE. THE PHOTOELECTRIC PROBE IT USED WITH REFLECTIVE TAPE FOR DETECT ROTATING OBJECTS. THE ACCESSORY ADAPTOR WITH POINTED TIP CAN BE ADDED FOR CONTACT MEASUREMENT OR WHEELS CAN BE USED FOR SURFACE SPEED MEASUREMENT.
* COMBINATION UNIT-PHOTO AND CONTACT
* LASER SIGHTING OPERATING RANGE UP TO 40. (1000 mm)
* AUTO RANGING-FIXED DECIMAL
* ROTATION SPEED (NON-CONTACT): 6.0 TO 99999 RPM (REV/MIN)
* ROTATION SPEED (CONTACT): 6.0 TO 25000 (REV/MIN)
* SURFACE SPEED (CONTACT): 0.6 TO 2500.0 M/M
0.7 TO 2734.0 Y/M (YARD/MIN)
23.6 TO 98425 I/M (INCH/MIN)
2.0 TO 8202.1 F/M (FEET/MIN)
* LENGTH (CONTACT): 0.1 TO 9999.9 M (METER)
0.1 TO 10936 YD (YARD)(BR) 0.3 TO 32808 FT (FEET)
* ACCURACY: 6.0 TO 5999.9 RPM: +/- O.01% AND 1 DIGIT
5999.9 TO 99999 RPM: +/- 0.05% AND +/- 1 DIGIT
SURFASE SPEED, LENGTH 0.5% AND +/- 1 DIGIT
* RESOLUTION: 6.0 TO 9999.9 RPM : 0.1 RPM
10000 TO 99999 RPM : 1RPM
* OPERATING TEMPERATURE: 32F TO +122 F (0C TO +50C)
* AUTO POWER OFF: AUTOMATICALLY AFTER APPROX. 30 SECOND
* BATTERY TYPE: 9V (006P), IEC6F22, NEDA 1604)
* DIMENSIONS: 5.79 H X 1.93 W X 1.14D (147MM X 49MM X 29MM)
* WEIGHT: 3.4 OZ (95 G) (WITHOUT BATTERY)
* TOTAL NUMBER OF REVOLUTIONS: 1 TO 99999 REV (rev)
* CERTFICATE OF CALIBRATION
THE TACHOMETER IS NEW, NEVER USED, COMES IN ORIGINAL BOX.
