New portable leeb hardness tester MH310- brand

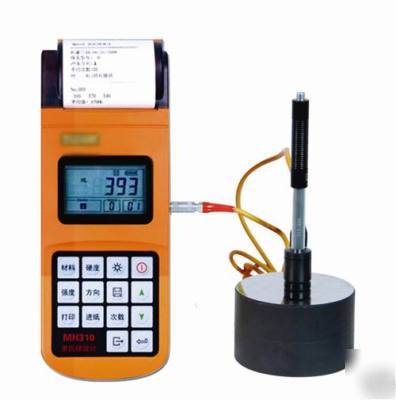

Portable Hardness Tester MH-310
1.Small volume with light weight, it is convenient for taking. Its outline dimensions are 212mm 80mm 32mm.
2. Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
3. Large screen LCD, showing all functions and parameters. With EL background light.
4. Seven impact devices are available for special application. Automatically identify the type of impact devices, and with the user calibration function.
7.Battery information showing the rest capacity of the battery and the charge status.
8. Original imported high speed thermal printer support the immediate printing function.
9. NI-MH rechargeable battery as the power source. With rechargeable battery, charging forthree hours, it can use for two months. Charge circuit integrated inside the instrument.
Continuous working period of no less than 150 hours (EL off and no printing).
10. Auto power off to save energy.
3. Failure analysis of pressure vessel, steam generator and other equipment
5. The installed machinery and permanently assembled parts
6. Testing surface of a small hollow space
7. Material identification in the warehouse of metallic materials
8. Rapid testing in large range and multi-measuring areas for large-scale work piece
Error and repeatability of displayed value:
Measuring range HLD 170 960 HLD
Hardness Scale HL HB HRB HRC HRA HV HS
Printing paper: width is 57.5 0.5 mm, diameter is 30mm.
Continuous working period about 150 hours With backlight off, no printing
Communication interface USB1.1
Outline dimensions 212mm 80mm 32mm
For use with G type impact device
Other type of impact devices and support rings
Refer to Table 3 and Table 4 in the appendix.
