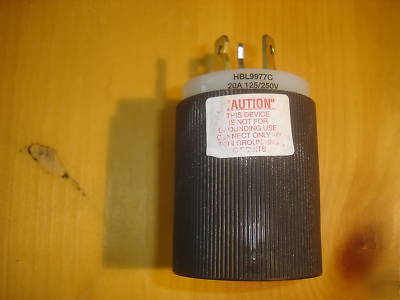

Hubbell HBL9977C plug 20A 125/250V 3-pole non-grounding
Hubbell HBL9977C Straight Blade Plug 20A 125/250V 3-Pole 3-Wire INSULGRIP Non-Grounding
Poles and Wires 3 Pole, 3 Wire Non-Grounding
Retainer Material Polycarbonate
Contact Blades Material .075 in. Brass
Terminal Screw Material Brass - Nat. or Ni Plated
Body Holding Screws Steel Multiple Drive
Dielectric Voltage Withstands 2,000V Minimum
Temperature Rise Max 30 C Temperature Rise @ Full Rated Current after 50 Cycles of Overload @ 150% of Rated Current @ a Power Factor of 75%
Operating Temperatures Max Continuous 75 C, Min -40 C (w/o Impact)
Terminal Identification Terminals Identified in Accordance with UL498 (Brass, White, Green)
Flammability Plug: UL 94 HB or Better
Data sheet: http:// /documents/5692-pdf.pdf
