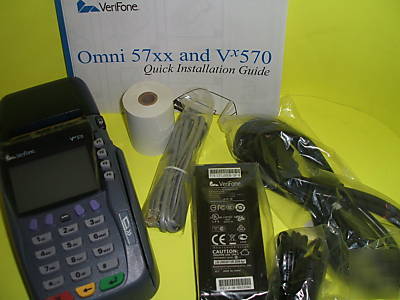

Verifone VX570 dual comm port 6MEG credit card terminal
The Vx570 Replace's The Omni 3750 terminal Which is not PCI DSS.
If You have any question about Our product or Like to place the order over the Telephone, Please call Us at:
200 MHz ARM9 32-bit RISC microprocessor
6 MB (4 MB of Flash, 2 MB of SRAM).
128 x 64 pixel graphical LCD with backlighting; Supports 8 lines x 21 characters
Triple-track (tracks 1, 2, 3), high coercivity, bi-directional
ISO 7816, 1.8V, 3V, 5V or synchronous and asynchronous cards; EMV Level 1 and 2 Type Approved
SAM Card Reader (Optional) 1 or 3 Security Access Modules
3 x 4 numeric keypad, plus 8 soft-function keys and 4 screen-addressable keys; PCI approved
One USB 1.1 port supports flash memory devices; Two RS-232 ports support peripherals including PIN pads and check readers; One telco port.
Integrated thermal printer with graphics capabilities, 18 lines per second, 24 or 32 columns, standard paper roll 58 mm (2.25 in.) x 25M, single ply; Optional large paper roll 58 mm x 35M
Standard 14.4k bps modem supporting Bell 103/212a, CCITT V.21/V.22/V.22bis/V.32/V.32bis
(300/1 200/2400/9600/1 4400 bps) and HC Fast Connect for 1200 bps. Optional: Fast POS for 9600 bps
SSL v3.0, 3DES encryption, Master/Session and DUKPT key management; VeriShield file authentication
0 to 40 C (32 to 104 F) operating temperature, 5% to 90% relative humidity, non-condensing
AC input 100 - 240 VAC, 50/60 Hz; DC Output 8.6 - 9.4 VDC, 4.0 Amp
