Parker solenoid valve G23

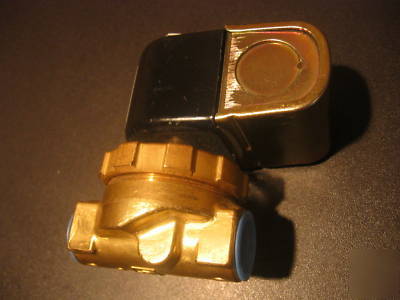

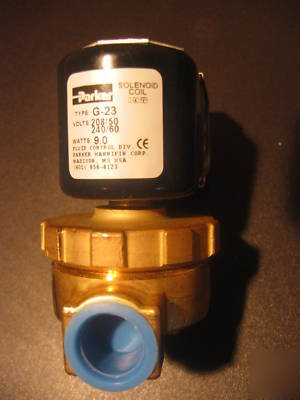

Parker Solenoid Valve G23 3/8NPT
GENERAL PURPOSE SOLENOID VALVES
Two-Way Solenoid Valves Type I (Normally Closed Only)
These valves are for General application on non-corrosive fluids such as air,
Water below 180 F, light oils below 300 SSU, and low vacuum. All seal off
Type I two-way solenoid valves can be used on either low or high pressure
And available in NPT through 1 NPT. The smaller valves are direct acting
While the larger valves are pilot operated.
BODY Forged Brass or Brass Bar
PLUNGER 430 Stainless Steel
SEALS, DISCS & DIAPHRAGMS Buna A (Seat Disc in G models is Fluoroelastomer)
ENCLOSING TUBE 300 Series Stainless Steel
SPRINGS ..300 Series Stainless Steel
Type I Two-way Normally closed (AC) Voltages
