New precision prime-rite primer trap valve pr-500 ppp -

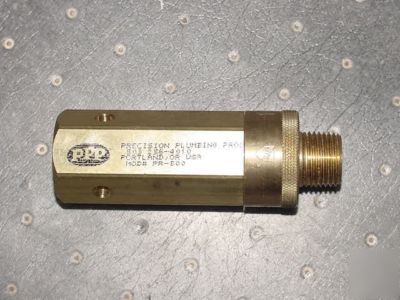

Precision Plumbing Products Prime-Rite Primer Trap Valve
This innovative trap priming system automatically primes up to four floor drain traps using our patented water distributsion system. The PRIME-RITE requires no adjustment but must be installed on a cold water line of 1-1/2" (38mm) diameter or less. The priming valve is automatically activated when it senses a pressure drop of 5 to 10 P.S.I.G. (35 to 70 kpa). The valve's operating range is 35 to 75 P.S.I.G. (245 to 535 kpa). All PR-500 Valves include integral vacuum breaker parts.
PPP PR-500 Prime-rite Primer Automatic Trap Primer Valve Features:
Installed on cold water lines of 1-1/2" diameter or less.
Automatically adjusts to line pressure
One priming valve will prime 1 to 4 floor drain traps, using the water distibution system
Machined from CDA 360 corrosion resistant brass
Does not contain springs, diaphrams, or plastic parts
* The priming valve must have a minimum elevation of 12 inches above the finished floor.
* Initial Quantity of 3 Available!
