Gould TA11 recorder
Not pictured but this item does includes Manual
System Confiquration 45-1601-10

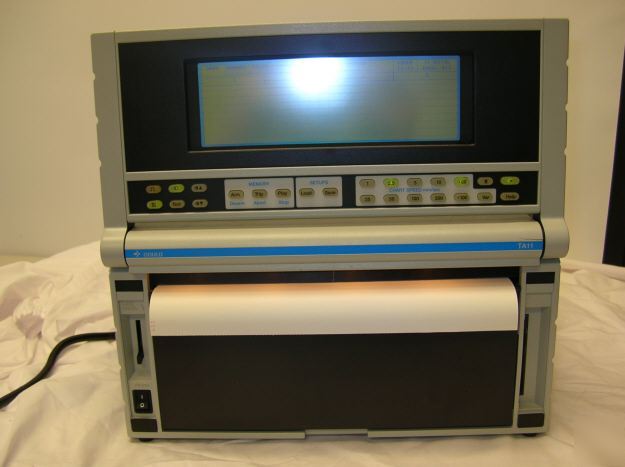

Unit does have a crack in the plastic as shown in the pictures, Does not effect operation, Unit is in good working order.
* 11" Wide Paper. Folds to an 8x 11 stack
* Internal Monitor for Real-Time Signal Display
* Trigger on Any Combination of Channels with 0-100% Pretrigger
* 8 Msamples of Storage Memory with Sampling Rates up to 250 kS/s
* RS-422A and IEEE-488 Communication Interfaces
* Removable Data Storage with PCMCIA Type II Memory Cards
* Chart Speeds from 0.01 to 200 mm/s with Trace Overlap and Full Annotation Capabilities
* TTL Signals Can Be Used to Control the Chart Speed and Chart Annotations
* Optional View II Software for WindowsAnalysis
* Monitor signals at scrolling speeds up to 2.5 mm/s
* Any combination of channels trigger on level and window with 0 to 100% pre-trigger
* Signal capture to 8 Msamples from 1 to 250,000 samples/s
* The RS-422A and IEEE-488 communication interfaces allow a program on a remote computer to completely control the recorder
* Thermal-array recorder prints discrete or overlapped traces at speeds from 0.01 to 200 mm/s with full annotation including user-entered channel ID
* TTL-level inputs control chart speeds, pulse-drive the chart motor, and set grid and time marks on/off; outputs provide basic recorder status, trigger out, and motor pulses out
* Optional View II software for Microsoft Windows-based analysis
* Integrates a large LCD panel into a flip-panel to provide recording-system function of signal monitoring
* While viewing signals on the monitor, you can set trace position, signal gain, and signal offset without running the chart
* Displays signals on its monitor as they occur; instead of waiting for the chart or changing the chart speed momentarily, you view signal changes immediately on the monitor
* Integrates 8 channels of factory installed signal conditioners into its portable package
* General Purpose DC/RMS-differential, impedance protected inputs, 25 mV to 500 VFS, RMS and zero suppress to 1000 V
* Capture signals of frequencies up to 35 kHz, too fast for real-time viewing
* Trigger to capture transient events by pressing a front-panel button, by time, or on any combination of channels
* Captured signals can be stored, as DOS files, on memory cards as an archive for later playback and analysis on recorder
* Select the grid format that fits your application from seven predefined and full-width, overlapping grids
* Simultaneously record up to eight analog and eight event channels, turn any channel on or off
* Overlap all signals with independent size and position for maximum resolution and comparative study
* A QWERTY-layout keyboard on the touch screen allows easy entry of text: channel IDs and up to a full page of periodic text
