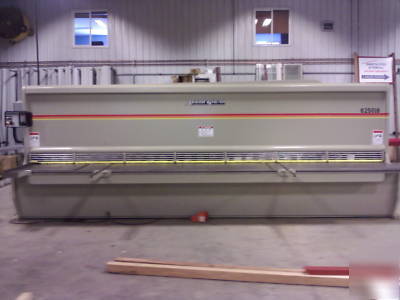

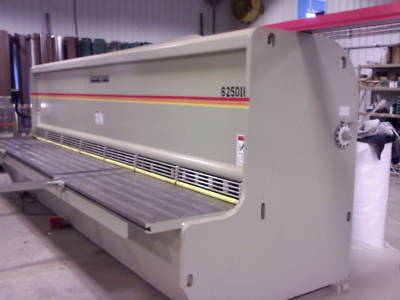

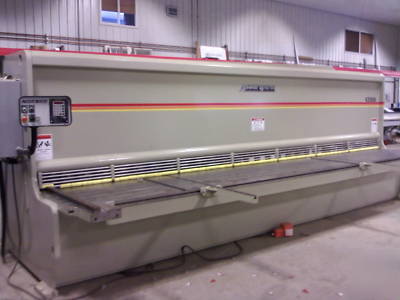

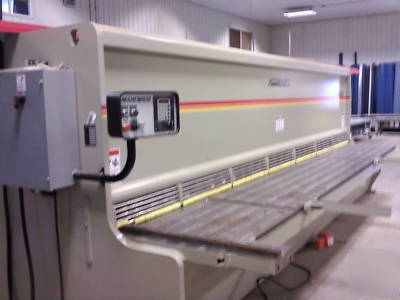

Accurshear 1/4" x 18' power squaring shear, 2008, 36"bg
We are pleased to quote for you the following. Please note that these are approximate specifications only. We advise that you personally inspect this machine before purchasing it to verify the following information:
1-Used Accurshear x 18 Power Squaring Shear
Capacity, Mild Steel....................................................... x 18
Capacity, Stainless Steel................................................ 3/16 x 18
Rake In/Ft...................................................................... .46
Number of Hold Down Cylinders.................................. 28
Bore of Hold Down Cylinders....................................... 3
Hold Down Tons Force................................................. 28
Blade Size...................................................................... 1 x 3 x 220
Full Wdith Strokes per Minute....................................... 13
Short Strokes per Minute............................................... 34
Machine Dimensions..................................................... 243 x 94 x 94
Machine Weight............................................................. 48,000 Lbs
Motor............................................................................. 20 HP
36 Backgauge Travel, 4 Edged Knives, 3 Position Foot Switch, 4 Squaring Arm with Steel Rule, Manual Quick Blade Adjustment, T Slot in Front of Table, Shadow Light & Line, Oil Cooler, Pendant Control (on/off buttons, mode selector & stroke control dial), Backgauge Control includes LED Display, Inch or Metric, Go To Function, 99 Pre-Select Programs
Machine is like new with less then 40 hours on it.
