New hp (agilent) 75000 E1369A rf switch driver 11713A/b
HP (Agilent) VXI 75000 E1369A 18 GHz Microwave Switch Driver (NEW)
We also have a wide range of GPIB equipment to interface the controller to your computer.
The E1369A Microwave Switch modules provide switching of up to three microwave coaxial switches or channels.
The HP E1369A Microwave Switch is a 3 channel, single-pole,
double-throw coaxial switch module. The module
panels are numbered 00, 01, and 02 to indicate the channel number of each coaxial switch installed.
The HP E1369A Microwave Switch Driver is identical to the HP
E1368A, except the coaxial switches are not installed. The module
panel has three cutouts and various mounting holes that allow the
user to install up to three 3-port, 4-port, or 5-port, 42Vpk drive level
coaxial switches. Drive level voltage can be internal (+5 and
+12Vdc) or external (42Vpk). The module panel is numbered 00,
01, and 02 to indicate the channel number of each coaxial switch.
Channel 03 and 04 are not labeled on the panel. Up to five coaxial
switches can be controlled (e.g. three internal, two external; five
external; etc) using the 14-pin connector.
This unit turns the HP 75000 into a switch.
Additional specs & Manual Available here:
http://www.home.agilent.com/agilent/editorial.jspx?cc=US&lc=eng&ckey=1000000883:epsg:man&nid=-35205.0.00&id=1000000883:epsg:man
This is a great alternative to the 11713A/B/C and is pretty much a 11713A/B/C on steroids.
We have a wide range of NEW 50 ohm and some 75 ohm switches ranging from 4 to 26.5 GHz allowing for a wide range of configurations to fit your needs.

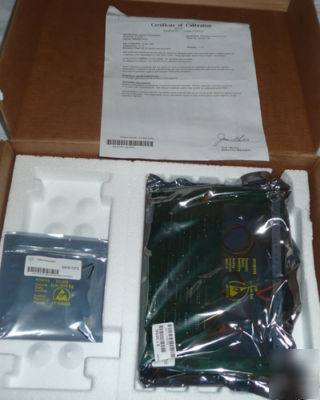

This unit is brand new comes with the manual, Certificate of Calibration & 0515-1373 Parts.
The 75000 Series B mainframe is pictured in the final photograph but is not included.
