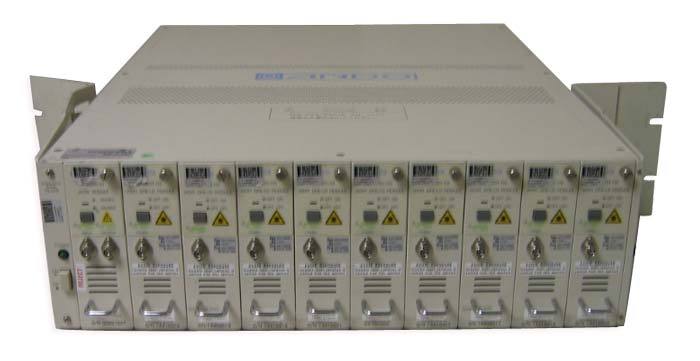

Ando AQ8201A mainframe w/ (10) modules
Ando AQ8201A Mainframe w/ (10) Modules
Up for sale is an Ando AQ8201A Mainframe with the following:
* One AQ8201-33 Variable Optical Attenuator
* Soft ver 1.03 installed
* Wavelenght range: 1480-1650 nm
* Maximun attenuation level: 60dB
* Minimum attenuation step: 0.001dB
* Optical return loss: 60dB or more (1550 nm)
* Maximum input power: +23dBm
* Nine AQ8201-110 WDM DFB-LD Module Light Source
* One Wavelength: 1542.142 nm
* Internal modulation: 194 to 400 THz (CHOP)
* One Wavelength: 1543.200 nm
* Internal modulation: 194o 200 THz (CHOP)
* One Wavelength: 1579.518 nm
* Internal modulation: 189 to 800 THz (CHOP)
* Opt 01: +13 dBm output power
* One Wavelength: 1582.854 nm
* Internal modulation: 189 to 400 THz (CHOP)
* One Wavelength: 1584.527 nm
* Internal modulation: 189 to 200 THz (CHOP)
* One Wavelength: 1586.203 nm
* Internal modulation: 189 to 000 THz (CHOP)
* One Wavelength: 1587.043 nm
* Internal modulation: 188 to 900 THz (CHOP)
* One Wavelength: 1587.884 nm
* Internal modulation: 188 to 800 THz (CHOP)
* One Wavelength: 1591.255 nm
* Internal modulation: 188 to400 THz (CHOP)
Ando AQ8201A with (10) AQ8201-11 DFB Light Source
* Internal modulation: 100 Hz to 300 kHz (CHOP)
* External modulation for sine waveform. 100 Hz to 300 kHz. SMA connector. 2Vp-p (50 ).
