Vision research high speed phantom camera dell control

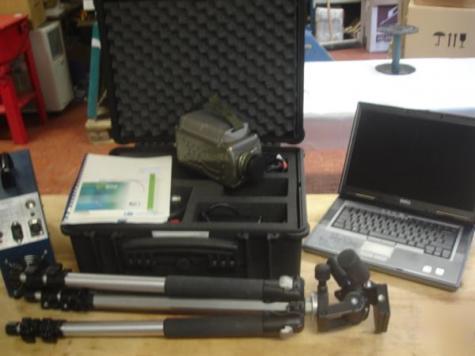

Vision Research High Speed Phantom camera Dell control
As a small business no sensible offer refused
Colour High Speed Digital Camera
Dell Latitude D820 Laptop with Camera controller
Manfrotto 329RC4 Professional Tripod
Photo-Sonics 7 Hour Battery Back up with built in charger
2048 mb standard upgradeable to 16gb
Nikon "F" Mount Lens (not included)
* Full frame 4:3 aspect ratio CMOS sensor composed of 800 x 600 pixels
* 6,688 fps at full resolution speed
* Up to 222,222 fps (standard mode), 500,000 fps (turbo mode) reduced resolution speed
* 22 micron pixel for super sensitivity
Our Phantom v7.3 camera now includes a new turbo mode to increase recording speeds for selected windowed resolutions to as high as 500,000 pictures per second with 1 second exposure times.
The monochrome Phantom v7.3 provides 14 bit image depth for extended gray scale image quality and light sensitivity. If you select a color camera, you have the opportunity to choose between 24, 36, or 48 bit images.
An extremely fast shutter controls image blur. The Phantom v7.3 offers continuously adjustable shutter speeds down to 1 sec (1/1,000,000 second). This shutter is a true "snap shot," or "global" shutter, functioning at the pixel level, and these sensors are sensitive enough to take advantage of the camera's high speed capabilities.
This Phantom v7.3 camera can optionally be configured with the ability to record images in real-time directly from the camera! Phantom v7.3 camera can be supplied with this optional ability to stream real-time image data to our external massive storage device known as the Image
Max. Frame Rate (fps) at Max. Resolution
190,476 fps @ 32 x 8 (standard)
8-, 10-, 12-, 14-bit selectable
2 s (standard); fixed 1 s (turbo)
Fully adjustable within recordable frames software or hardware trigger (TTL)
Yes, 5 user defined profiles within one cine
SAM-3 (Signal Acquisition Module 3)
Yes, Internal, External, IRIG-B, IRIG-B w/Phase Shift
2GB, 4GB, 8GB, 16GB, 32GB integrated; up to 320GB w/Image3
F-mount standard; C-mount available
Input: 100 240VAC Output: +24VDC/1.5 Amp; DC range 20-36VDC
Preview, Focusing and Playback
SVGA Computer Monitor, Continuous Video Out
CAR Continuous Adjustable Resolution
Yes in 32 x 8 pixel increments
Yes, to Cine, Cine Compressed, Cine RAW, AVI, Multipage TIFF, MXF PAL, MXF NTSC, Quick Time, Windows BMP, OS/2 BMP, PCX, TGA, TIFF, LEAD, JPEG, JTIF, RAW, DNG, DP
Yes; up to 2000fps (8-bit images); up to 1300fps (12-bit images)
PIV Particle Image Velocimetry
Phantom Camera Control, Phantom Video Player, Phantom Cine Panel, Phantom Explorer.
10.9cm x 10.16cm x 24.13cm (4.3in x 4.0in x 9.5in)
1/4-20 inch and four 10-32 mounting holes base and top
80% non-condensing at 5 C (41 F)
