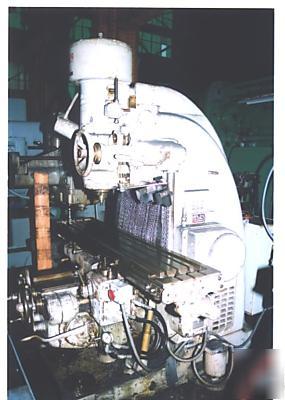

Vertical mill, 3CH-15 h.p. kearney & trecker
#3CH-15 H.P. KEARNEY & TRECKER Vertical Mill, S/N 5-8375, new 1958
Table working surface: 13 x 64
Maximum distance spindle nose to table: 18
32 feeds, longitudinal and cross 3/8 to 90 IPM
32 vertical feeds 3/16 to 45 IPM
Rapid traverse rate, longitudinal and cross 150 IPM
Rapid traverse rate, vertical 75 IPM
Mono-lever and automatic cycle table control with (5) dogs
15 H.P. 3/60/220-4000 volt main drive motor with controls
Machine wired for 3/60/220 volt operation
Approximate weight: 8,150 lbs.
Floor space required: 119 LR x 82 FB x 78 High
