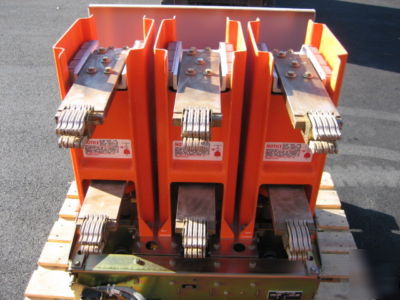

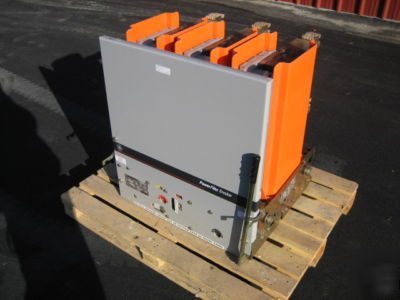

Ge general electric power vac VB1 13.8-750-3 powervac
This General Electric 1200 / 2000Amps Vacuum Breaker is in Excellent Condition. It has been very well serviced and maintained and has little use.
Siemens Industrial Services Division inspected and tested this PowerVac breaker in 2003.
Rated Max. Voltage: 15 kV Rated Amp. 1200 / 2000 Hz: 60 Impulse Withstand: 95 kV Int. Time: 5 Cyc
Rated Short Circuit Amps: 28 kA Rated Voltage Factor: 1.3 Close & Latch Capability Amp.: 58 kA
Close Coil: 0282A7340G002 Volts: 125 DC Closing Amps.: 6.0 Volt Range: 100-140
Trip Coil 1: 0282A7015G002 Volts: 125 DC Closing Amps.: 7.3 Volt Range: 70-140
Charging Motor: 017705050G001 Volts: 125 VDC
Connection Diagram: 020988250P002 WT: 560 lbs Mech Type: ML-18 Date MFG: 7/97
