Biocommunication electronic biofeedback emg lo volt amp

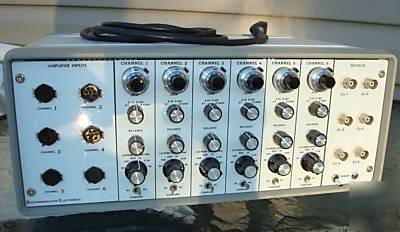

Biocommunication Electronics model 215
Measuring force, positon, or torque - when used with strain gage transducers.
Measuring oral or nasal pressure (speech research) when used with aerodynamic transducers.
Can also be used with microphones, especially high impedence types (or dynamic mics with matching transformer. Can be used with preamplifiers, such as EMG, that require additional gain and filtering. Can also be used with accelerometers.
Common model rejection ratio (gain = 100): 100 dB
Input noise (gain = 100): less than 2 microvolts
Voltage: Adjustable from 2 to 7 volts
Output regulation: .03 % typical
Stability: less than .1% drift at full load in 1000 hours
Output noise: less than 20 microvolts
Voltage: +12 volts (+/- .5 v.), -12 volts (+/- .5 v.)
Maximum current: 100 mA per output
Output regulation: 22 mV (typical)
Cutoff frequency (-3 dB): 50, 100, 500, 1000, 2500, 5000 Hz
Rolloff in stopband: 18 dB/octave
Maximum output swing: +/- 10 volts
Output impedance: less than 100 ohms
Input: (6) 7-pin hex female connectors with locking pin. Mating plug - either a 7-pin male (amphenol #126-195) if +/- 12 volts is required or can be a 5-pin male (amphenol # 126-217) if it is not.

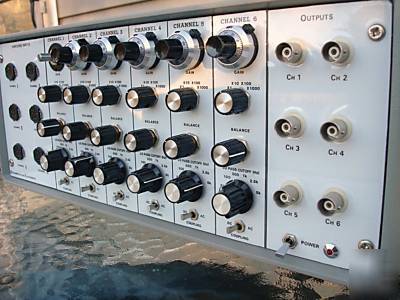

Output: (6) bnc output connectors
Gain Adjustment - Calibrated dial with range from 0 - 100 with decimal adjustment, as well as mulitpier dial X1, X10, X100, and X1000.
Low Pass Cutoff Filter: (in Hz) 50, 100, 500, 1k, 2.5k, 5k
Coupling: DC / AC toggle switch used to eliminate very low frequencies including D.C. (i.e. offset) when set to A.C. coupling.
Power requirement: 110 volt AC
Sale includes: Biocommunication Electronics model 215 Technical Manual
