> Beverage air freezer reach in model EF48-1AS

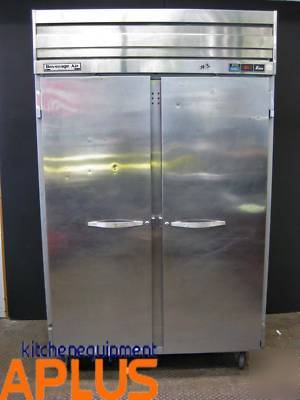

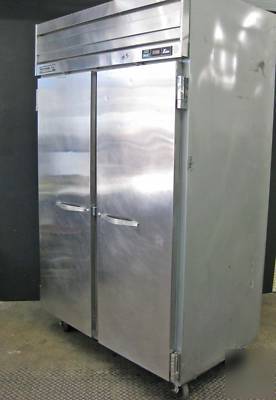

Beverage air freezer reach in model EF48-1AS
- CONSTRUCTION: Heavy duty construction includes stainless front (doors and grilles) with #3 finish. Exterior sides are steel with gray, acrylic finish. Exterior top, back, and bottom are galvanized steel. Exterior mounted thermometer is digital type. Interior cabinet liner is anodized aluminum finish. Interior pilasters are regular type. Interior shelves are steel wire-coated. Cabinets are insulated with R22 foamed-in-place polyurethane insulation, 2 minimum thickness. All doors are full size unless specified half size and include keyed door locks as standard with solid doors. Doors attach to cabinet on cam lift hinges. Hinges permit doors to stay open at 120 degrees and gravity self-close. A plug-in type, vinyl magnetic gasket is attached to each door. Shelves are adjustable on 1/2 centers. Traffic tough work flow handle is standard. Door openings include low wattage, anti-condensate heaters. A switch located at the top of each full door opening activates light and shuts off evaporator fan motor(s) when door is opened. Six inch, adjustable, corrosion resistant legs are standard. A 9 cord is provided with 115-60-1 models. With 115/208-230 models, a J box is provided for hard wire connection (4 wire system).
- REFRIGERATION: Unit s system is located at top of cabinet. A pressure limiting TXV (thermal extension valve) is used to meter refrigerant between condenser and evaporator. Defrosting is accomplished with electric heaters. Defrost is time initiated, temperature terminated. A time termination is provided as a backup fail-safe. Evaporator fans are delayed from restarting until coil is adequately chilled down. Operation of compressor is governed by temperature control behind front grill. Hot gas (nonelectrical) condensate evaporator is located at top of cabinet. Pressure relief port is provided to make rapid reentry possible.
- AIR DISTRIBUTION: Beverage-Air s unique down-duct air distribution provides the ideal environment for food preservation. Refrigerated air is discharged from an insulated evaporator coil compartment located above the interior top of cabinet into a distribution plenum. From the plenum, air is discharged down both sidewalls one half way back. In two section models, 3-way air discharge is accomplished with an additional down duct located on the center back wall from the discharge plenum for the floor. In three section models, 4-way air discharge is accomplished with two additional down ducts located on the back wall. Air is returned upward across the full width of the interior into a louvered plenum assuring even temperatures throughout the cabinet.
Dimensions: 84-1/2"(H) x 52"(W) x 30"(D)
This unit sells NEW for over $3,500.00!
