Robertshaw pneumatic temperature transmitter 2252-251

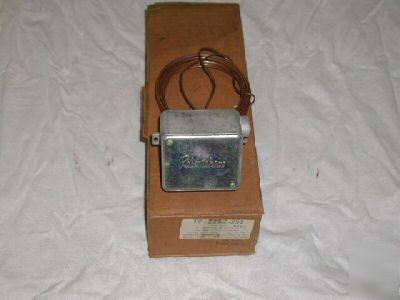

Robertshaw Pneumatic Temperature Transmitter TP2252-251
Unused surplus part in original box w/ data sheet
* The TP2252 pneumatic temperature transmitter is designed to measure air or fluid temperatures in pneumatic control systems and transmit a fixed span, 3 to 15 psig signal to controlling and indicating devices, such as receiver controllers, receiver gages, and sensitive pressure switches.
* It is a "one-pipe" device requiring an externally restricted source of constant pressure control air.
* External mounting ears are provided for strain-free mounting on ducts or other flat surfaces.
* Thermal Element: 20' Averaging
* Action: Direct - Proportional
* Supply Pressure: 20 psig 0.5 psi
* Output Pressure: 3 to 15 psi
* Maximum Safe Pressure: 30 psi
* Air Connection: 1/8"-27 FNPT
* Maximum Ambient Temperature: 140 F
* Cadmium Plated Steel Cover
* Replaces Factory Model T150-1022.
