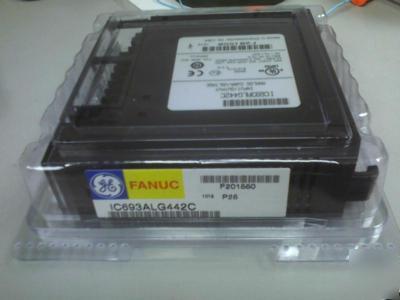

New ge fanuc IC693ALG442C i/o analog module
The versatility of the Series 90-30 is largely driven by the large variety of discrete
and analog I/O modules (over 100 modules), as well as specialty modules, that
* A/D Type, Resolution Integrating, 18 bits Useable Resolution 13 bits plus sign I/O Required 4 %AI, 4 %AQ, 16 %I Sample Rate 45 channels/second Analog Filtering 1 KHz, 3 pole Bessel Digital Filtering 1-128 samples/update Maximum Error .05% full scale Common Mode Range 500 VAC (RMS),
* 700 VDC Common Mode Rejection >100 dB Module Type: Analog Output
* Range: 0 V to +10 V, -10 V to +10 V, 0-20 mA, 4-20 mA
* Number of Channels: 4 in/2 out
* Updated Rate: 8 ms all channels In / 4 ms all channels Out
* 0-20 mA, 4-20 mA 5?A/bit (Output) 16 bit
* Accuracy: (Input) 0.25 % at 25
* F) (Output) 0-20 mA, 4-20 mA
* Connector Type: Terminal Block (20 screws), included with module.
