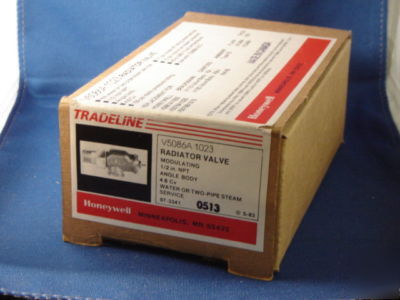

Honeywell V5086A 1023 radiator valve 1/2" angle sweat
***These are OBSOLETE through Honeywell***
Control room temperature by modulating the flow of hot water or steam through free-standing radiators, convectors or baseboard units
V5086 valve body mounts on radiator or convector. Actuator available with integral or remote sensor, and integral or remote setpoint adjustment. Valves provide modulating temperature control to reduce energy consumption, eliminate overheating. Actuator responds to small changes in room temperature. Valve cartridge can be changed without system shutdown or drain down. No electric power required.
Application Thermostatic Radiator Valve Pipe Size (inch) 1/2 in. Controlled Medium Steam Controlled Medium Hot Water Body Pattern - Angle Capacity (Cv) 4.6 Cv Capacity (Kv) 4 Kv Temperature Range (F) 40 F to 250 F Temperature Range (C) 4 C to 120 C Maximum Static Pressure (psi) 150 psig Maximum Static Pressure (kPa) 1035 kPa Maximum Fluid Temperature (F) 248 F Maximum Fluid Temperature (C) 120 C Maximum Differential Pressure (psi) 17 psi Maximum Differential Pressure (kPa) 117 kPa Maximum Close-off Pressure (psi) Water-17 psi; Steam-15 psi Maximum Close-off Pressure (kPa) Water-117 kPa; Steam-103 kPa Materials (Body) Bronze Materials (Seat) EPDM Materials (Stem) Stainless Steel Materials (Cartridge) EPDM Dimensions (in.) 4 3/4 in. high x 2 1/8 in. wide x 3 1/4 in. deep Dimensions (mm) 120 mm high x 53 mm wide x 82 mm deep Comments Inlet fittings-female NPT Used With T5086 Tradeline Value Tradeline Pipe Size (DN) DN15 Connection Type Sweat
This item is Brand New old stock
