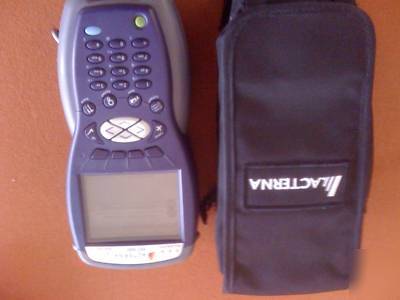

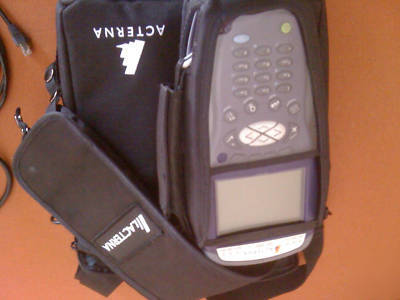

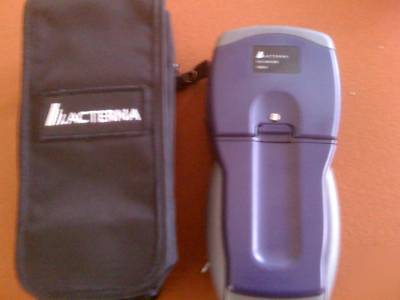

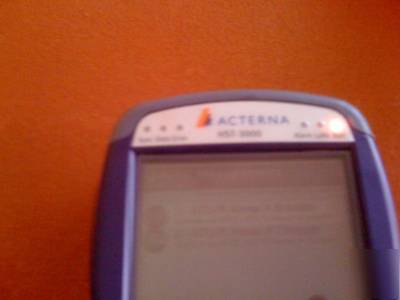

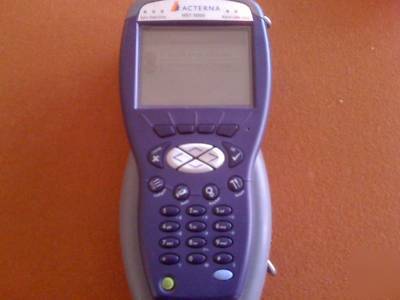

Jdsu acterna hst-3000 adsl handheld service tester
Dual TIP/RING and Ground POTS/Copper: Color-coded, shrouded 2mm mini-banana jacks
10/100 BT Ethernet jack: 8-pin modular
Serial port: DB9 female via cable (DCE)

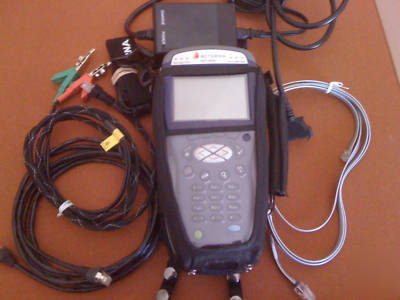

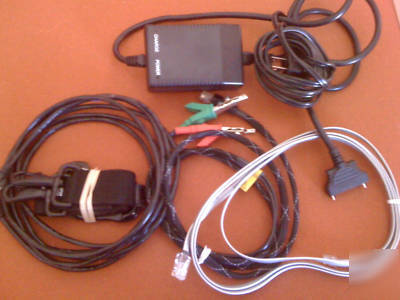

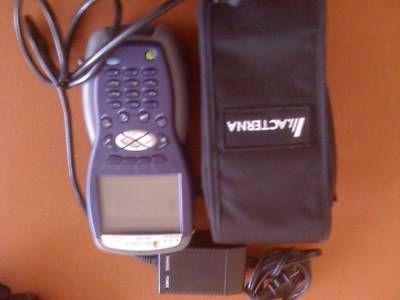

USB Device that it comes with and the instruction manuals. In excellent condtion
Portable test set addressing the needs of Layer 1 thru Layer 7 testing with IPv6 Capability
Handheld, modular platform for copper and multi-service testing
* Support for Electrical and Optical Ethernet testing in a single module.
* IPv6 option to enable installation and troubleshooting of IPv6 networks.
* Modular hardware and software architecture is flexible and easily upgraded in the field. Allows testing of multiple services.
* Supports Triple Play and FTTX testing, as well as TDM network testing.
* Future-proof solution for circuit-switch to packet-switch migration.
* Rugged, hand-held platform ideal for field use.
* Ability to perform traffic generation up to interface line rate and support automated RFC2544 at Layers 2 to 4 (Eth/IP/TCP/UDP).
* Ability to generate and analyze traffic with various encapsulation schemes such as VLAN, VLAN Stacking (Q-in-Q), and MPLS.
* PPPoE protocol support for emulation of data traffic in the last mile.
* FTTX and Triple Play testing - Advanced tests for the installation and maintenance of DSL and PON-based Triple Play IP voice, video, and data services.
* xDSL testing - verify the circuit and service with modem emulation and replacement for ADSL, ADSL2, ADSL2+, G.SHDSL, and VDSL2.
* Complete copper testing including DVOM, TDR, wideband TIMS, spectral noise, and resistive fault locator (RFL).
* GigE and 10/100 Ethernet - Generate traffic and troubleshoot Ethernet links, both optical and electrical, for point to point or routed networks.
* North American 'Special Services' - Turn-up and troubleshooting for North American business-class data services: Ethernet, T1, DS3, PCM TIMS, PCM Signaling, DDS-LL, Frame Relay, ISDN PRI, ISDN BRI, and Datacom.
* Global Business Services - Turn-up and troubleshooting for global business-class data services: Ethernet, E1, ISDN BRA, G.SHDSL, and Datacom.
* TechComplete - Improve xDSL processes through automation and centralized, web-based management tools.
* 3.8" diagonal, 1/4 VGA, Color Active Matrix display.
* Simplified user interface to facilitate ease-of-use and minimize technicians learning curve.
* Handheld, rugged and portable. Lightweight (1.3kg/2.7lb). Weather resistant. Ideal for field use.
* Battery operated (up to 10 hours). Swappable battery pack.
* RS-232, USB and Ethernet connectivity.
* PC replacement - including file transfer, 8MB of storage, VT100 emulation, printing and internet browser.
* Built-in microphone and speaker. Headset connection.
