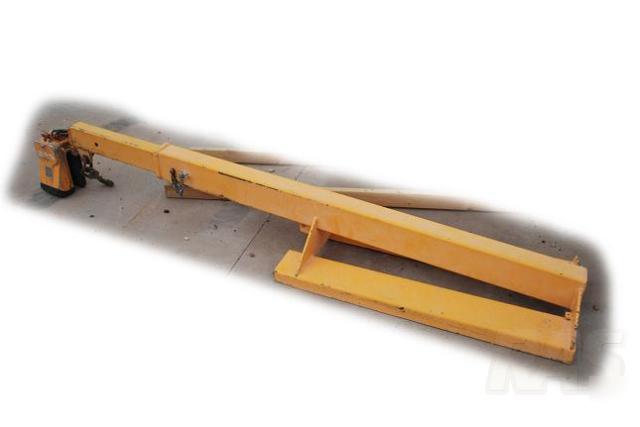

Aardwolf forklift jib FB1-2600 & lifter 50 slab handler
AARDWOLF FORKLIFT JIB FB1-2600 & LIFTER 50 SLAB HANDLER
These are USED items but work great... we are selling these on a CONSIGNMENT basis for the owner Marion (***)-467-3589
Specs on this equipment can be found at their website: Click HERE for the FB1-2600 and Click HERE for the Lifter 50
Technical Specifications For FB1-2600:
Maximum load capacity, fully retracted 1,500Kgs, fully extended - 500Kgs.
Manually telescopes from 1.5 M to 2.600 M in 2 increments of 550 mm.
Boom extension is designed so it cannot be pulled all the way out.
The boom is firmly secure onto fork blades by two bolts located at the back of each fork pocket and restraint pins.
Slip on the forks design with fork pockets 130 mm wide x 54 mm high.
Fork pockets are 375 mm to centers.
The patented Aardwolf Lifter is an accessory for lifting and moving slab-form loads. The Aardwolf Lifters incorporate a spring-loaded latch that automatically releases the lifter from the slab once the slab has been fully lowered to the ground. This makes the process of lifting and lowering of slabs a one-man operation.
__________________________________________________________________________________________________
Application: For lifting 10 to 50 mm thick material. (SWL 1000kg) Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
Secure: The Aardwolf clamps grip slabs firmly. The Aardwolf Lifter 50 has a force multiplying factor of approximately 2.5 to 1. ________________________________________________________________________________________________________________ This will be a freight item so please email us directly at ****@gmail.com for any freight quotes or call us at (***)-875-8476 and ask for Amanda.
