2 channel pc based digital storage usb oscilloscope
2 Channel PC Based Digital Storage USB Oscilloscope New
* 2 channel input and synchronized display
* Records date, time and voltage in text file
* Measures range automatically
* Input capture (trigger) function
* Able to set any channel as the source of the capture (trigger) signal
* Able to set rising or falling edge to capture (trigger) signal
* Adjustable capture (trigger) signal level
* Powered directly by USB port no batteries or external power supply required
* Use with electronic teaching equipment
* Carry out acoustic tests and research
* Examine and repair apparatus and appliances

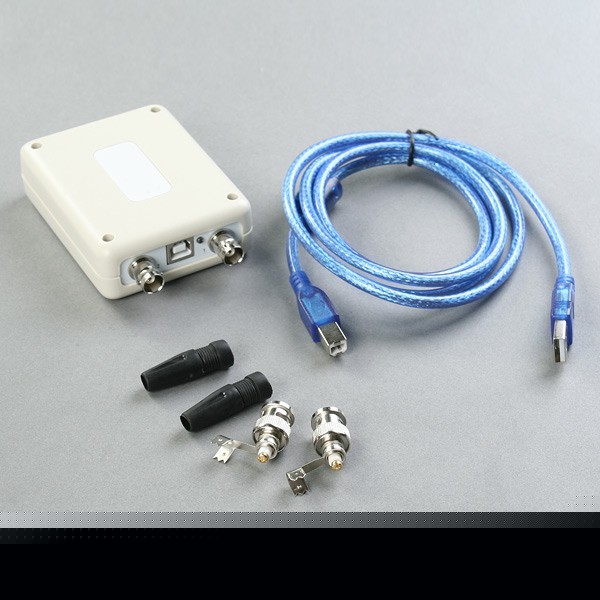

2 channel PC storage oscilloscope is brand new and boxed and comes with:
* CD which includes instruction manual and driver installer
* Operating systems used: W2K, XP
* Signal input: BMC connection with universal oscillograph probe
* Max sampling: 8kHz x 1/ (4kHz x 2)
* Voltage: 5V USB port supply
* Measurable frequency: 0Hz -3kHz
* DIV array: horizontal 16DIV x vertical 10DIV
* Error of voltage measurement: 30mV
* Adjustable range of time domain: 10 mS/DIV-10800 S/DIV
* Error of time measurement: 0.01%
* Capacity of data record & save: 8388608 x 2
* Max time of data record & save: 93 hours
