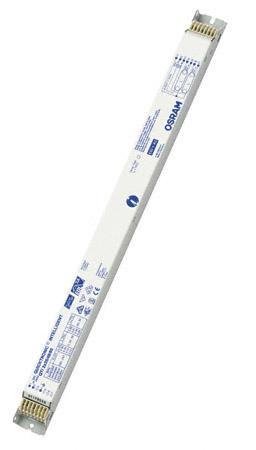

Osram quicktronic dimmable T5 fh/fq ballast qti 2X80W
OSRAM Quicktronic Dimmable T5 FH/FQ Ballast QTI 2x80W
"Fluorescent lamps-ECG - T5 - 1...10V DIM"
Line frequency: 0, 50 to 60 Hz
Digitally controlled preheating
Optimum preheating in any dimmer setting
Cut-off above 80% luminous flux
Lamp start from any dimmer setting throughout the temperature range
Constant output during line voltage fluctuations
Same luminous flux with direct and alternating current
Dimming range 100 to 1% luminous flux
Automatic safety shutdown of lamps in the event of a defect or at end of life (EOL)
Automatic restart after lamp replacement
Energy Efficiency Index EEI = A1
Approval marks: ENEC 10 sign, VDE sign, EMV-sign
Lamp operation acc. to EN 60929
RI suppression: acc. to EN 55015, EN 55022
Line harmonics: acc. to EN 61000-3-2
Control via the 1...10V interface
Additional features: EOL sign, Cut off sign
Standard : EN 55015; EN55022 / EN 61547 / EN 61000-3-2
Operating frequency : 44...120 kHz
TH full width at half maximum : 230 s
Power factor c : 0.95; 0.97; 0.99
Max. no. of ECGs on circuit breaker 10A : 5
Max. no. of ECGs on circuit breaker 16A : 9
Luminous flux : 2 x3300; 2 x4300; 2 x6100 lm
Mounting hole spacing, length : 415 mm
Wire preparation length, output side : 8....9 mm
Wire preparation length, input side : 8....9 mm
Maximum casing temperature in the event : 110 C
Maximum operating temperature at the Tc : 75 C
Ambient temperature range : +10 ... +50 C
Storage temperature : -40 ... 85 C
Relative humidity : 5 ... 85 %; max. 56 d/y at 85 %
Our Ref. G500/HD379/PM165/OP12
