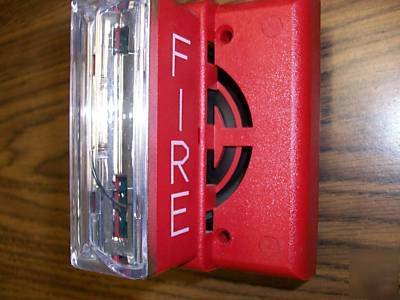

Gentex horn/strobe model SHG12-1575WR
The Gentex HG/SHG Series horns are quality electronic
signaling devices that offer you both dependable evacuation
signals and visual alarms or a combination of both by
simple terminal wiring. The SHG Series can also be wired
to have independent operation of both horn and strobes
(see Wiring Diagrams on page 2). This can be simply
done by removing two jumper plugs located on circuit
board (see installation manual for details).
The HG/SHG Series horns are easily field-changeable
from a steady low-frequency alarm signal to a pulsing lowfrequency
alarm signal by simply removing a jumper
plug. Changing from a steady tone to a pulsing tone does
not prevent reverting back to the original tone at a later
The HG/SHG Series horns are designed to be used for
both new construction or retrofit projects. They easily
mount to 4" electrical boxes or 2-gang outlet work boxes
SHG devices are UL 464/1971 listed for use with fire
protective systems. HG devices are UL 464 listed.
Low-frequency penetrating output.
Low current consumption: 17 mA @ nominal voltage
Screw terminals, separate in/out wiring option for both
Textured finish high-impact plastic faceplate.
Wide variety of mounting options for new construction
Supplied with beauty plugs to accommodate a variety of
Strobe maintains constant flash rate (1 per sec.) regardless
Flush or semi-flush mounting without the need of a trim
15/75 & 30/75 candela strobe option (SHG12-1575 and
SHG24-1575/3075). Meets ADA 4.28.3 requirements.
All 110 cd models exceed requirements of ADA 4.28.3.
UL 464/UL1971 listed for fire protective service/signal for
