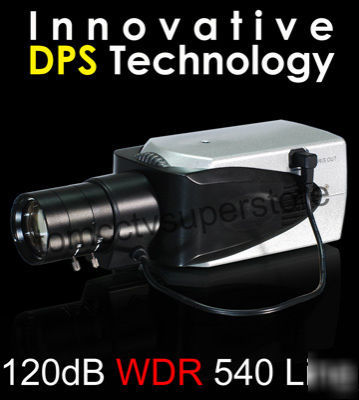

Cctv 1/3 wdr 540/570TV line dsp pixim sensor d/n camera
JE-81352 WDR Color Camera adopt the innovative DPS wide dynamic image sensor and image processing technology with built-in wide dynamic sensor. DPS is an innovative video capture (sensor) and image processing mode, the video sensor samples each pixel multiple times in a single capture frame. DPS not only records the light, but also calculates the changing rate, so it provides a wider dynamic range for each pixel than CCD and CMOS, even when there is a large contrast between lightness and darkness. The process-or translates the light into a digital at the point of capture, thus minimizing signal degradation and allowing for greater noise reduction methods and an optimal image reproduction.
The DPS (Digital Pixel System) sensor coupled with Pixim s original digital processing technology enables the 95dB max125dB wide dynamic range. The joining of these two technologies allows for the reproduction of a clear and natural image even in locations where there is a significant difference in the intensity of illumination, such as by the window, or in the entrance lobby of a building. It also resolves the unnatural blurring of images that was seen in other conventional wide dynamic cameras.
The camera delivers 540 lines of horizontal resolution with a signal-to-noise ratio of 50 dB. It boasts superior picture quality and allows for the reproduction of clear color images.
With the IR Cut Filter, the camera can gain the max S/N rate to capture more sharp image at night.
Be more convenience for user to configure the camera with OSD menu.
4x WDR Mode for easy config : Indoor, Outdoor, Normal, Costumer
High price-to-performance ratio
PAL 720(H) 540(V) NTSC 720(H) 540(V)
Horizontal Resolution 540TV Lines
0.5Lux/ F1.2; 0.08Lux/ F1.2 (32x Slow Shutter)
101 dB (Typical Value), 120 dB (Max Value)
Auto tracking/ Auto/ Manual White Balance
Yes (With moving IR cut filter)
1.0Vp-p (Video Range Value Adjustment)@75
