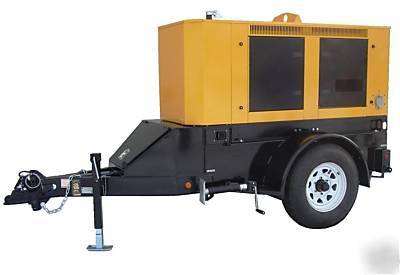

Generator - trailer mounted - diesel fired - 25 kw
25,000 Watts (25 kW) - 120/240V - Single Phase - Diesel Fired - Two Wheel Trailer Mounted - Highway Ready
Model VIRRP251202401PH - 120/240V - Single Phase
Model VIRRP251202083PH - 120/208V - Three Phase
Model VIRRP251202403PH - 120/240V - Three Phase
Model VIRRP252774803PH - 277/480V - Three Phase
* Commercial Heavy Duty 25,000 Watt (25 kW), 120/240V, Single Phase, Diesel Fired, Trailer Mounted Generator
* Surge Wattage: 25,000 (25 kW)
* Continuous Wattage: 20,000 (20 kW)
* Amps at Terminal Block: 70
* Amps Total Including Receptacle Panel: 83
* Sound Level at Full Load: 65.9 dB(A) @ 7 Meters
* Engine: Isuzu 4LE1 2.2 Liter - Naturally Aspirated
* Fuel Consumption: 50% Load - 9/10 GPH / 75% Load - 1.4 GPH / 100% Load - 1.8 GPH
* Run Time: 50% Load - 50 Hours / 75% Load - 32 Hours / 100% Load - 25 Hours
* Motor Starting Capacity: 7.5 Hp Code G
* Trailer Capacity: 3,500 Lbs
* Overall Dimensions: 135" L x 58" W x 73" H
