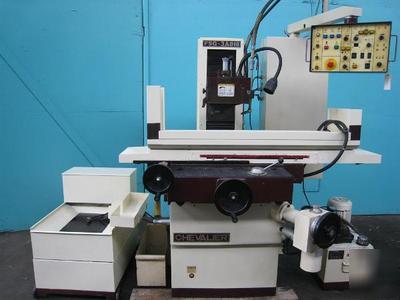

Chevalier 3-axis automatic hydraulic surface grinder
CHEVALIER 3-AXIS AUTOMATIC HYDRAULIC SURFACE GRINDER
WITH MICROPROCESSOR CONTROLLED AUTOMATIC INCREMENTAL DOWNFEED
MAXIMUM DISTANCE BETWEEN SPINDLE
ELECTROMAGNETIC CHUCK SIZE: 8" x 18"
LONGITUDINAL: MANUAL OR 16-82 FPM
DIRECTLY DRIVEN 2 HP/3PH/3450 RPM
PER GRADUATION: (MICROFEED) 0.0001
3 AXIS FULLY AUTOMATIC WITH SURFACE AND PLUNGE GRINDING CYCLES
2 HP LOW VIBRATION SPINDLE MOTOR
HIGH PRECISION CARTRIDGE TYPE SPINDLE EQUIPPED WITH 4 PIECES OF CLASS 7
ANGULAR CONTACT BALL BEARINGS, SUITABLE FOR HEAVY DUTY GRINDING
SPINDLE RUNOUT SHALL BE WITHIN 0.000060"
SEPARATE HYDRAULIC SYSTEM PREVENTS VIBRATION & REDUCES HEAT TRANSFERENCE
PROXIMITY SWITCHES ARE UTILIZED TO SIMPLIFY TABLE STROKE ADJUSTMENT
FLATNESS IS GUARANTEED TO 0.00012" FOR THE ENTIRE WORKING SURFACE (WHEN NEW)
MICROPROCESSOR CONTROL SYSTEM FOR EASE OF OPERATION & TROUBLE FREE PRODUCTION
TABLE TRAVELS ON HARDENED AND GROUND GUIDEWAYS WITH BALL BEARINGS
SADDLE TRAVELS ON DOUBLE V GUIDEWAYS LAMINATED WITH TURCITE
WHEELHEAD RISES UP AUTOMATICALLY AND TABLE PARKS AT LEFT OR RIGHT SIDE AFTER CYCLE IS COMPLETED
PARK SYSTEM FOR EASY REMOVAL OF WORK PIECE
* 8 x 18 ELECTROMAGNETIC CHUCK AND CONTROL
* OVER THE WHEEL PARALLEL DRESSER
* MICRO DOWNFEED DEVICE (0.0001 )
* AUTOMATIC LUBRICATION SYSTEM
* PAPER FILTRATION COOLANT SYSTEM
* LEVELING SCREWS, NUTS & PADS
CLEANED, CHECKED AND IN VERY GOOD CONDITION!
NEW REPLACEMENT VALUE: $23,500.00
