12" w 24" l nicco nsg-6H surface grinder, auto idf, dee
12" W 24" L Nicco NSG-6H SURFACE GRINDER, AUTO IDF, DEE
12" Width 24" Length Nicco NSG-6H SURFACE GRINDER, AUTO IDF, DEEP CUTTING FEATURE, EMC, CLNT, DRES

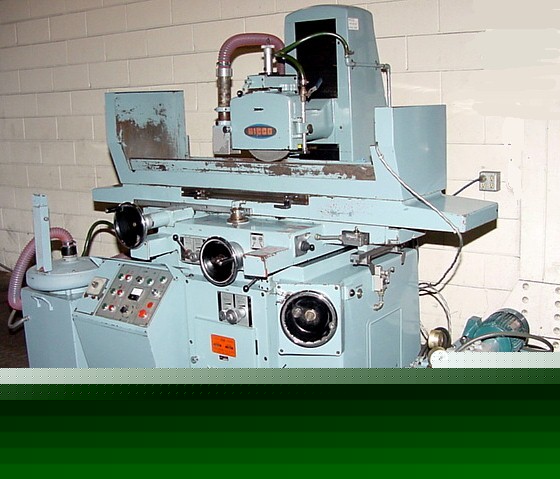

12" X 24" NICCO PRECISION (JAPANESE BUILT) SURFACE
GRINDER W/AUTOMATIC INCREMENTAL DOWNFEED
MODEL: NSG-6H S/N: 13805 NEW: 1984
WIDTH & LENGTH GROUND................. 12" X 24"
LONGITUDINAL TABLE TRAVEL............. 27"
CROSSFEED TRAVEL...................... 13"
TOP (MAX.) .......................... 20"
MAX. VERTICAL TRAVEL OF SPINDLE ...... 16"
GRINDING WHEEL SIZE .................. 12" X 1.5" X 3"
RANGE................................ 0.0001" TO .0016"
APPROX. MACHINE WEIGHT................ 4,800 LBS.
MACHINE DIMENSIONS ................... 81" X 60" X 74"
AUTOMATIC INCREMENTAL DOWNFEED FOR PLUNGE & SURFACE
GRINDING WITH "DEEP CUTTING" (1 TO 30 PASSES) FEATURE
- DOWNFEED WILL ALLOW MORE THAN ONE PASS & UP TO 30 OF
THE DOWNFEED HANDWHEEL (ONE REV. OF HANDWHEEL IS .04")
SPARKOUT CONTROL (1 TO 30 PASSES)
TABLE PARKS TO THE SIDE @ COMPLETION OF GRIND CYCLE
11- 5/8" x 23- 5/8" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL
COMBINATION COOLANT SYSTEM w/MAGNETIC SEPERATOR
MANUAL "OVER-THE-WHEEL" DRESSER
5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
