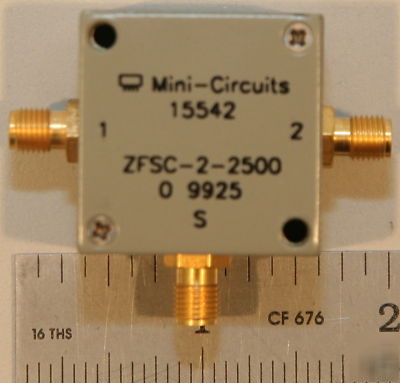

Mini-Circuits ZFSC-2-2500 Power Splitter/Combiner
Mini-Circuits ZFSC-2-2500 Specifications:
* Frequency Range: 10-2500 MHz
* Low Range [Fq-low to 10 Fq-low]: 16 Typ., 11 Min.
* Mid Range [10 Fq-low to Fq-up/2]: 17 Typ., 14 Min.
* High Range [Fq-up/2 to Fq-up]: 17 Typ., 14 Min.
* Insertion Loss (dB) Above 3.0 dB:
* Low Range [Fq-low to 10 Fq-low]: 0.5 Typ., 0.8 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 0.6 Typ., 1.4 Max.
* High Range [Fq-up/2 to Fq-up]: 0.8 Typ., 1.5 Max.
* Low Range [Fq-low to 10 Fq-low]: 1 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 4 Max.
* High Range [Fq-up/2 to Fq-up]: 8 Max.
* Low Range [Fq-low to 10 Fq-low]: 0.2 Max.
* Mid Range [10 Fq-low to Fq-up/2]: 0.3 Max.
* High Range [Fq-up/2 to Fq-up]: 0.4 Max.
Mini-Circuits ZFSC-2-2500 Data Sheet
