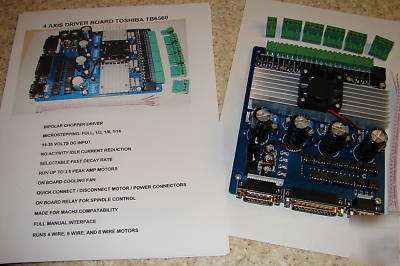

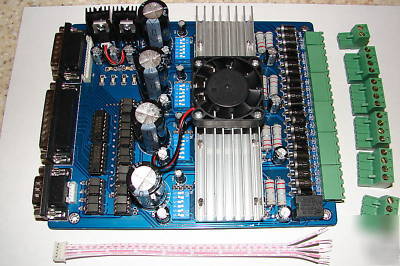

Cnc 4 axis stepper motor driver TB6560 includes extras
HERE ARE THE EXTRAS YOU GET WITH US "VERY IMPORTANT" READ THE NEXT 12 LINES FIRST.
WE INCLUDE ON YOUR TEST VIDEO CD,AN EASY TO LOAD CONFIGURATION FILE FOR YOUR BOARD, SO YOU WONT HAVE TO CONFIGURE THE PORTS AND PINS SECTION OF MACH3 TO GET YOUR MOTORS RUNNING
WE INCLUDE A SECOND VIDEO ON YOUR TEST VIDEO CD SHOWING HOW TO LOAD THE CONFIG FILE.
WE INCLUDE A FULL COLOR 12 PAGE PRINTED MANUAL, THE OTHER GUYS DON'T
WE INCLUDE THE 5 PIN I /O CABLE FOR E-STOP, AND LIMITS-THE OTHER GUYS DON'T (JUST TRY AND GET ONE)
WE INCLUDE INSTRUCTIONS ON HOW TO CONNECT THE OPTICALLY ISOLATED LIMIT SWITCH, HOME SWITCH, AND EMERGENCY STOP SWITCHES. JUST TRY AND FIGURE THIS OUT WITH THE "NON-DOCUMENTATION" THAT
THE OTHER GUYS INCLUDE, GOOD LUCK.
MICROSTEPPING: FULL, , 1/8, 1/16 th.
RUNS 4 WIRE, 6 WIRE, AND 8 WIRE MOTORS
ONBOARD COOLING FAN AND FAN POWER SUPPLY
QUICK CONNECT / DISCONNECT-MOTOR / POWER CONNECTORS
ON-BOARD RELAY FOR SPINDLE CONTROL
MADE FOR MACH3 CNC SOFTWARE COMPATABILITY
