5252 johansson 5400 4’ x 12” heavy duty radial drill

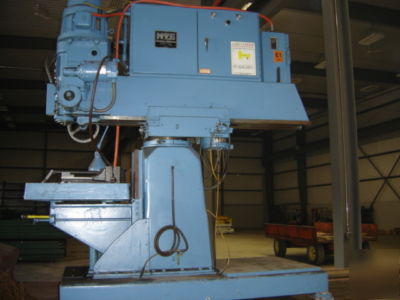

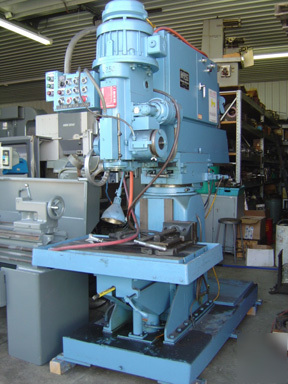

JOHANSSON MODEL 5400 4 x12 HEAVY DUTY RADIAL DRILL
Max workpiece dia at table and base 8
Spindle to face of column at table & base 7 min
Horizontal travel of head on ram 41
Table to spindle 4 min (spdl retracted)
Base to spindle 32 min (spdl extended)
Table working surface 19 x34
Spindle power feed (infinitely variable) 0-12 min
Length of column bearing in housing 20
Length of knee bearing on machine way 18
Floor to top of head (max) 94
Drill is equipped with power feed, tapping and locking.
