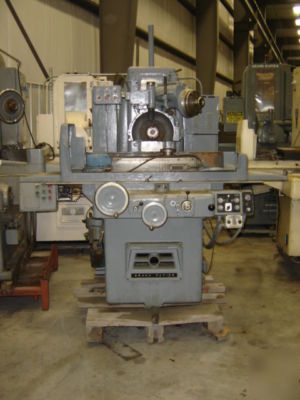

2326 gallmeyer & livingston model 350 hydraulic surface
GALLMEYER & LIVINGSTON MODEL 350
Working surface of table 8 x 24
Hydraulic table travel, longitudinal 29
Hydraulic table travel, transverse 9
Standard wheel size 12 x 1 x 3
Vertical movement of wheel head 16
Maximum distance from wheel to table 15
Distance center of spindle to bottom of spindle housing 2
Standard spindle speeds 2000 & 2400 rpm
Standard spindle motor 3 hp/1750 rpm
Standard hydraulic pump motor 1 hp/1200 rpm
Approximate floor space 110 x 66
Machine is equipped with wheel dresser, incrematic down feed, 8 x 24 electro-magnetic chuck with Neutrofier and automatic Bijur lubrication.
