> Tektronix VM700A video waveform set w/options 01 & 40

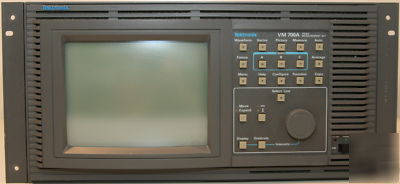

Tektronix VM700A video waveform set w/options 01 & 40
Tektronix VM700A Video Measurement Set
The VM700A Video Measurement Set is a multifunction television test and measurement device with an easy-to-use interface. The VM700A combines the functions of a waveform monitor, vectorscope, automatic measurement set, and noise measurement set in a single instrument. Input signals can be broadcast or generated by test equipment. The VM700A can be operated by using its front-panel controls or by using one of the rear-panel RS-232C ports.
* Group delay and frequency response
* Hardcopy via standard RS232 interface
* Unattended monitoring of NTSC video signals from studios, STLs, Earth Stations, and transmitters
* Opt. 40: Audio Measurement Module
Measure Mode Provides Graphic Display of Measurements:
* Differential gain and phase
* Chrominance to luminance delay
* Group delay with (sin x)/x
* Relative to reference on most measurements
* Configurable for all standard test signals
* Averaging on all measurement modes
* Picture mode for source ID
* Hardcopy for analysis and documentation
Tektronix VM 700A Operator's Manual
Tektronix VM 700A Reference Manual
